Johnson Controls VG1245AGH923BGA Ball Valve 24V Brass Actuator

Product Description

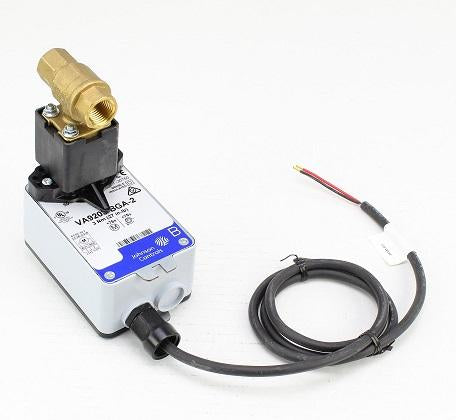

The Johnson Controls VG1245AGH923BGA is a high-quality ball valve designed for HVAC systems. Featuring a two-way stainless steel trim and non-spring return electric actuator, this valve ensures reliable regulation of hot and chilled water flow as well as low-pressure steam depending on controller demands. Ideal for both on/off and modulating control applications.

• Constructed from forged brass for high durability and a 580 psig static pressure rating.
• Compatible with Johnson Controls electric actuators including VA9104, VA9203, and more.
• Available in sizes from half an inch up to two inches (DN15 to DN50).

Product Highlights

This valve is suitable for installation in a variety of HVAC systems, supporting both new constructions and maintenance or upgrades of existing systems.

Product Information

Standard Information

• Brand: Johnson Controls
• Model Number: VG1245AGH923BGA

Technical Specifications

• Actuator Type: VA9203-BGA-2 Thermal Barrier Open Non-Spring-Return Electric Actuator Without Switch
• Size: 1/2 inch through 2 inches
• Body Material: Forged Brass
• Pressure Rating: 580 psig static
• Control Type: On/Off, Floating, Proportional
