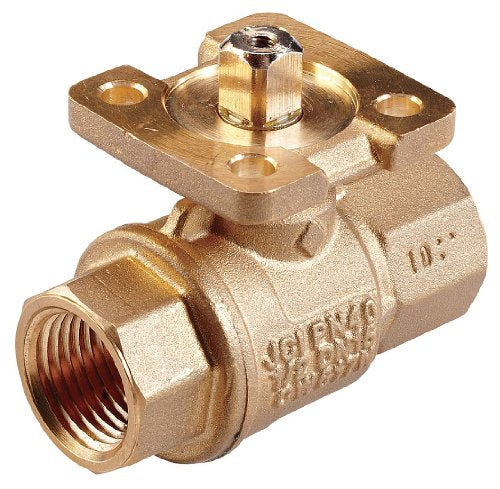

Johnson Controls VG1245AD+943AGB Two-Way Stainless Steel Trim NPT End Connection Ball Valve with VA9203-AGB-2Z Actuator

Product Description

The Johnson Controls VG1245AD+943AGB Two-Way Ball Valve is engineered for efficient flow regulation in HVAC systems. It comes with a VG1245AD valve and a VA9203-AGB-2Z electric actuator.

• Efficient flow control for HVAC systems
• Includes VG1245AD valve and VA9203-AGB-2Z actuator
• Durable forged brass body

Product Highlights

This valve is built to handle hot or chilled water and low-pressure steam. It is suitable for use in various HVAC systems, providing reliable performance with a stainless steel trim and a robust forged brass body. The electric actuator ensures precise control and ease of operation.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VG1245AD+943AGB
• Product Type: Valve
• Manufacturer: Johnson Controls, Inc

Technical Specifications

• Size: 1/2 inch
• Pressure Rating: 580 psig
• End Connection: NPT
• Body Material: Forged Brass
• Series: VG1000
• Actuator Model: VA9203-AGB-2Z
• Flow Capacity: 1.2 Cv
• Voltage: 24V
• Spring Return: Normally Closed
• Position: Two-Position
