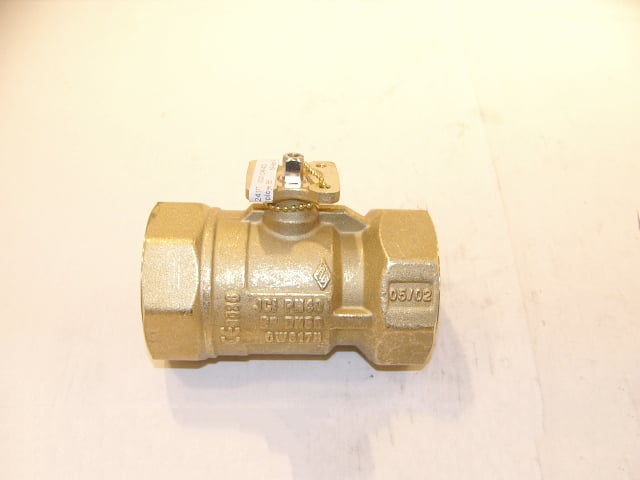

Johnson Controls VG1241FT948GGA Ball Valve Assembly 2 Way 2 in

Product Description

The Johnson Controls VG1241FT948GGA is a ball valve assembly designed for HVAC applications. This two-way valve is suitable for both hot and chilled water systems.

• Maintenance-free design for long-term use
• Handles a fluid temperature range from twenty-three degrees Fahrenheit to two hundred three degrees Fahrenheit
• Chrome-plated brass ball and stem assembly for durability

Product Highlights

This valve performs effectively in systems contaminated with iron oxide, lasting over two hundred thousand full stroke cycles without failure.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1241FT+948GGA

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution
• Power Consumption: 7.9 VA Running, 5.5 VA Holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: -40 F to 140 F (-40 C to 60 C)
• Electrical Connection: 48 in. 18 AWG Appliance Cable With Integral 3/8 in. FMC Connectors
