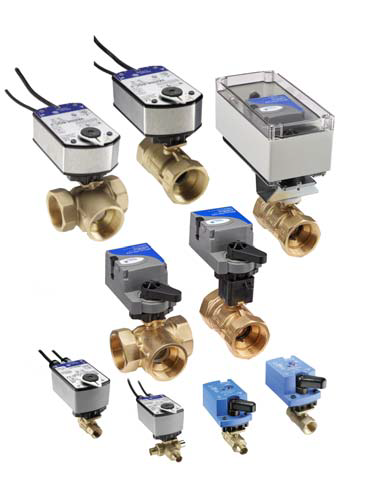

Johnson Controls VG1241FS+958GGC Ball Valve Assembly, 2 Way, 2 in.

Product Description

The Johnson Controls VG1241FS+958GGC is a two-way ball valve assembly designed for HVAC applications. This assembly features a robust forged brass body and a chrome-plated brass ball, making it suitable for both chilled water and hot water systems. It can operate under a fluid temperature range of twenty-three F to two hundred three F.

• Maintenance-free design
• Long lifespan with over 200,000 full stroke cycles
• Compatible with iron-oxide contaminated water

Product Highlights

This valve assembly provides accurate flow control with a rangeability of five hundred to one and operates efficiently in various load conditions.

Product Information

Standard Information

• Brand: Johnson Controls
• Min Order Qty: 1

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution
• Auxiliary Switch: 2 x SPDT
• Power Consumption: 7.9 VA Running, 5.5 VA Holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: -40 F To 140 F (-40 C To 60 C)
• Electrical Connection: 48 in. 18 AWG Appliance Cable With Integral 3/8 in. FMC Connectors
