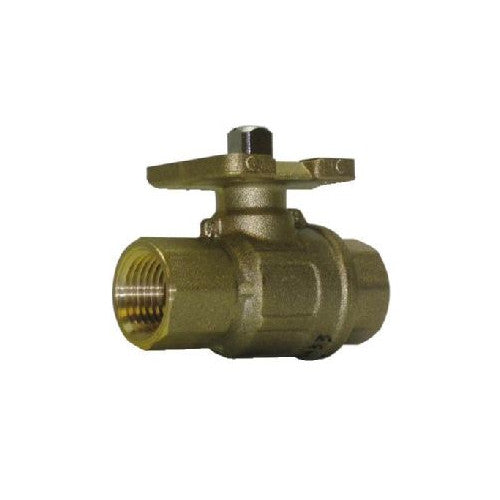

Johnson Controls VG1241FS+958BGA Ball Valve Assembly, 2 Way, 2 in.

Product Description

The Johnson Controls VG1241FS+958BGA is a two-way ball valve assembly designed for HVAC applications. This unit features a forged brass body and chrome-plated brass ball suitable for both chilled and hot water systems. The valve is capable of handling a fluid temperature range from twenty-three degrees Fahrenheit to two hundred three degrees Fahrenheit.

• Maintenance-free design ensures long-lasting performance.
• Can perform over two hundred thousand full stroke cycles.
• Includes a direct mount electric actuator for easy installation.

Product Highlights

This valve assembly is perfect for various HVAC systems, providing accurate control under all load conditions.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1241FS+958BGA

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution
• Power Consumption: 6.1 VA Running, 1.2 VA Holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: -40 F To 140 F (-40 C To 60 C)
• Electrical Connection: 48 in. 18 AWG Appliance Cable With Integral 3/8 in. FMC Connectors
