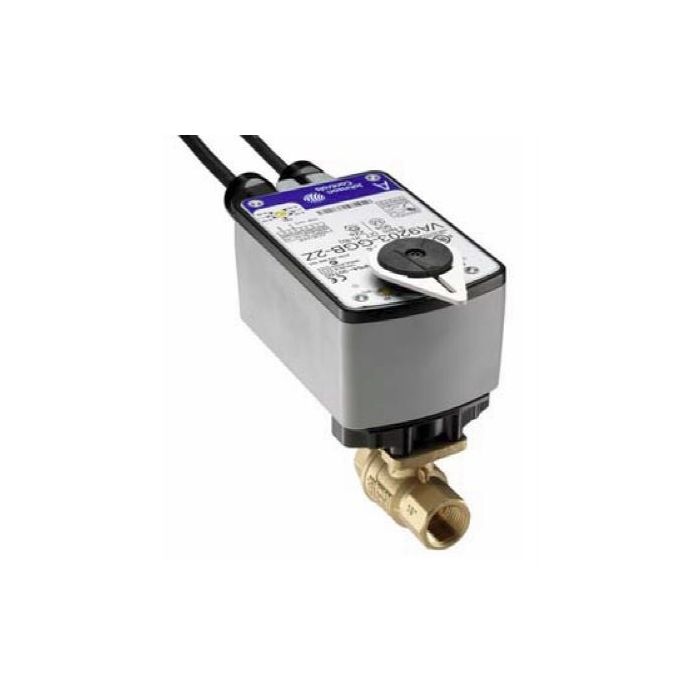

Johnson Controls VG1241FS+938BAC Ball Valve Assembly, 2 Way, 2 in.

Product Description

The JOHNSON CONTROLS VG1241FS+938BAC is a ball valve assembly designed for regulating the flow of hot or chilled water. It features a forged brass body, chrome-plated brass ball, and nickel-plated brass blowout-proof stem. The valve is suitable for HVAC systems, offering a maintenance-free design and accurate control under various load conditions. It operates with 85-264 VAC and provides on/off control.

• Maintenance-Free Design
• Performs Without Failure In Excess Of 200,000 Full Stroke Cycles In Iron-Oxide Contaminated Water
• 500:1 Rangeability

Product Highlights

This ball valve assembly is ideal for hot and chilled water applications, providing reliable performance and precise control in HVAC systems.

Product Information

Standard Information

• Brand: JOHNSON CONTROLS
• Manufacturer Part Number: VG1241FS+938BAC
• Country of Origin: Mexico

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution
• Auxiliary Switch: 2 x SPDT
• Power Consumption: 0.05 A Running, 0.03 A Holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: -40 F To 140 F (-40 C To 60 C)
• Electrical Connection: 48 in. 18 AWG Appliance Cable With Integral 3/8 in. FMC Connectors
• CV: 46.8
• Trim: Brass
• Runtime: 55-71 Secs
• Voltage: 120V
• Actuator: VA9208-BAC-3
• Fail-Safe: Spring Return
• Connection: NPT
• Valve Size: 2 in
• Valve Piping: 2-Way
• Close-Off Rating: 200 PSI
• Actuator Type: Electric
• Supply Voltage (Nominal): 24 VAC
• Trim Material: Brass
• Pattern: 2-way
• Size: 2 in
• Control Signal: Two Position
• Control Input: On/Off
• Control Valves Type: Ball Valve
• Spring Return: Spring Return
