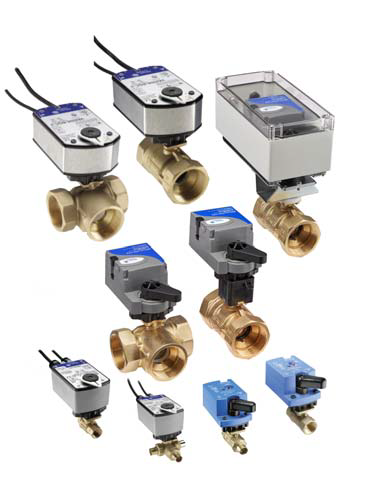

Johnson Controls VG1241ES+938GGC Ball Valve Assembly 2 Way 1-1/2 in.

Product Description

The Johnson Controls VG1241ES+938GGC is a reliable ball valve assembly intended for use in various HVAC applications. This 2-way valve features a size of one and one-half inches and is designed for both hot and chilled water services.

• Suitable for use in iron-oxide contaminated water.
• Offers a high flow capacity with 46.8 Cv.
• Constructed with a forged brass body and chrome-plated brass ball.

Product Highlights

This valve is ideal for maintaining accurate flow control under various load conditions.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1241ES+938GGC

Technical Specifications

• Operating Conditions: -40 F To 140 F (-40 C To 60 C)
• Power Consumption: 7.9 VA Running, 5.5 VA Holding
• Flow Characteristic: Equal Percentage
• Close-Off Pressure: 200 psig
• Auxiliary Switch: 2 x SPDT
• Electrical Connection: 48 in. 18 AWG Appliance Cable With Integral 3/8 in. FMC Connectors
