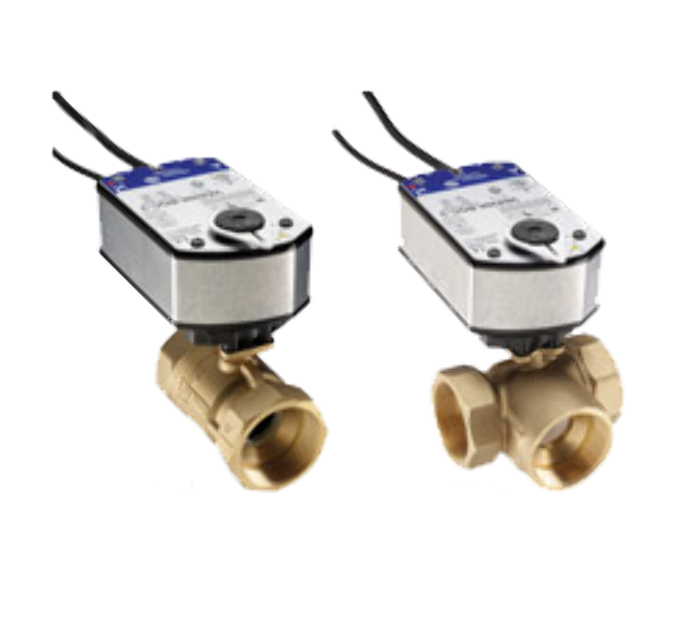

Johnson Controls VG1241EP+938GGC Ball Valve Assembly, 2 Way, 1-1/2 in.

Product Description

The Johnson Controls VG1241EP+938GGC is a two-way ball valve assembly designed for effective flow control in various applications. This valve features a one and one-half inch size, suitable for both hot water and chilled water systems.

• Maintenance-free design for reliability over time.
• Delivers high accuracy with a 500:1 rangeability.
• Compatible with fluid temperatures ranging from twenty-three degrees Fahrenheit to two hundred three degrees Fahrenheit.

Product Highlights

Constructed with a chrome-plated brass body and a nickel-plated brass blowout-proof stem, this valve ensures durability and longevity. The direct mount electric actuator operates at twenty-four VAC and provides proportional control.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1241EP+938GGC
• Category: Valves & Valve Actuators
• Minimum Order Quantity: 1
• Availability: Out of Stock

Technical Specifications

• Service: Hot Water, Chilled Water, 50/50 Glycol Solution
• Auxiliary Switch: 2 x SPDT
• Power Consumption: 7.9 VA Running, 5.5 VA Holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: -40 F To 140 F (-40 C To 60 C)
• Electrical Connection: 48 in. 18 AWG Appliance Cable With Integral 3/8 in. FMC Connectors
