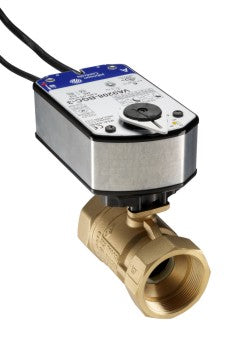

Johnson Controls VG1241DR928GGA Ball Valve Assembly 2 Way 1-1/4 In. Replacement VG1241DR+928GGA

Product Description

The Johnson Controls VG1241DR928GGA is a reliable ball valve assembly designed for 2-way applications with a size of 1-1/4 inches. The valve features a maintenance-free design and is suitable for both chilled water and hot water systems. It accommodates fluid temperatures ranging from twenty-three degrees Fahrenheit to two hundred three degrees Fahrenheit.

• Forged brass body provides durability.
• Operates with a direct mount electric actuator.
• Handles a variety of fluid applications.

Product Highlights

This valve assembly is engineered to perform without failure, even in contaminated water environments. It boasts a flow characteristic of equal percentage and is capable of operating under extreme conditions.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1241DR+928GGA

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution
• Power Consumption: 7.9 VA Running, 5.5 VA Holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: -40 F to 140 F (-40 C to 60 C)
• Electrical Connection: 48 in. 18 AWG Appliance Cable with Integral 3/8 in. FMC Connectors
