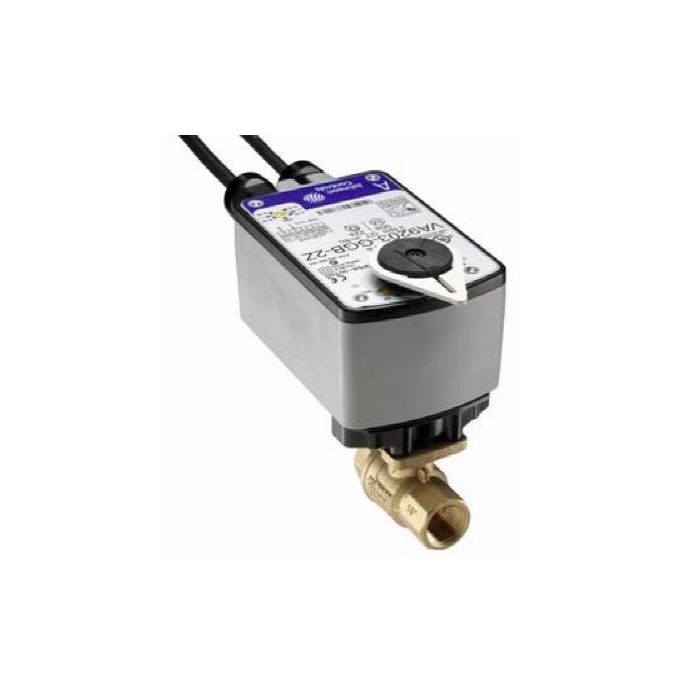

Johnson Controls VG1241DP+958GGC Ball Valve Assembly, 2 Way, 1-1/4 in.

Product Description

The Johnson Controls VG1241DP+958GGC is a two-way ball valve assembly designed for HVAC applications. It is suitable for both chilled and hot water systems. This valve features a forged brass body and a chrome-plated brass ball, ensuring durability and reliability. Its maintenance-free design allows it to perform without failure for over 200,000 full stroke cycles in contaminated water systems.

• Direct mount electric actuator with a spring return of 70 lb-in.
• Wide temperature range from twenty-three degrees Fahrenheit to two hundred three degrees Fahrenheit.
• Supports various load conditions with a rangeability of five hundred to one.

Product Highlights

This product is ideal for HVAC control systems, providing precise control of fluid flow in heating and cooling applications.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1241DP+958GGC

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution
• Auxiliary Switch: 2 x SPDT
• Power Consumption: 7.9 VA Running, 5.5 VA Holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: -40 F to 140 F
• Electrical Connection: 48 in. 18 AWG Appliance Cable with Integral 3/8 in. FMC Connectors
