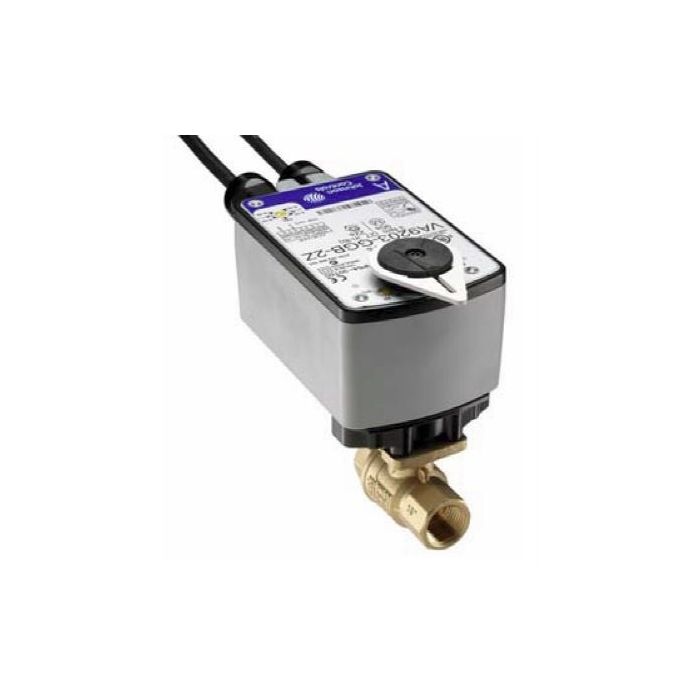

Johnson Controls VG1241DN+958GGC Ball Valve Assembly, 2 Way, 1-1/4 in.

Product Description

The Johnson Controls VG1241DN+958GGC is a reliable ball valve assembly that operates as a two-way valve and measures one and one-quarter inches. This unit is designed for HVAC applications, providing efficient control of hot and chilled water flows. The forged brass body ensures durability and longevity in service.

• Maintenance-free design for enhanced reliability.
• Performance extends beyond two hundred thousand full stroke cycles.
• Handles both chilled and hot water with operating temperatures between twenty-three degrees Fahrenheit and two hundred three degrees Fahrenheit.

Product Highlights

The VG1241DN+958GGC features a chrome-plated brass ball, nickel-plated brass blowout-proof stem, and a direct mount electric actuator.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1241DN+958GGC
• Minimum Order Quantity: 1

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot Water, Chilled Water, 50/50 Glycol Solution
• Auxiliary Switch: 2 x SPDT
• Power Consumption: 7.9 VA Running, 5.5 VA Holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal Percentage
• Operating Conditions: -40 F To 140 F (-40 C To 60 C)
• Electrical Connection: 48 in. 18 AWG Appliance Cable With Integral 3/8 in. FMC Connectors
