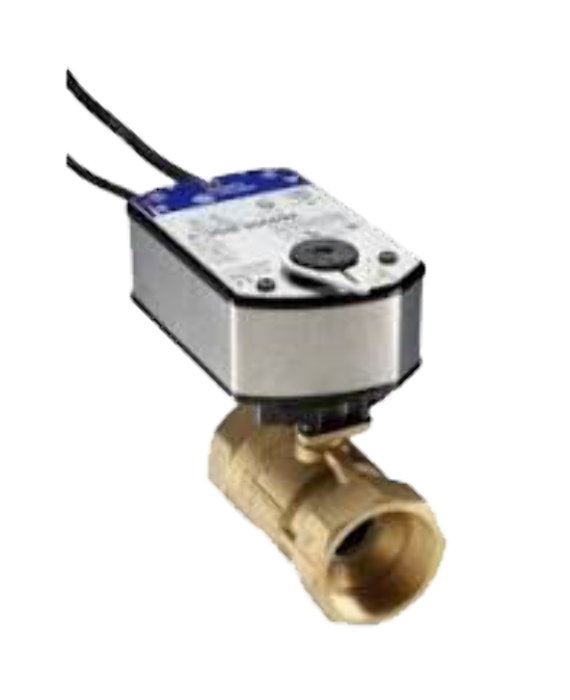

Johnson Controls VG1241DN+938BGC Ball Valve Assembly 2 Way 1-1/4 in.

Product Description

The Johnson Controls VG1241DN+938BGC is a two-way ball valve assembly with a size of one and one-fourth inches. This valve is designed for reliable operation in various HVAC systems. Its key features include a maintenance-free design and the ability to perform over 200,000 full stroke cycles in contaminated conditions.

• Constructed from forged brass for durability.
• Handles both chilled and hot water applications.
• Operates in a fluid temperature range of twenty-three degrees Fahrenheit to two hundred three degrees Fahrenheit.

Product Highlights

This ball valve is designed for efficient control in both demanding and regular applications.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VG1241DN+938BGC

Technical Specifications

• Housing: NEMA 2, IP54
• Service: Hot water, chilled water, 50/50 glycol solution
• Auxiliary Switch: 2 x SPDT
• Power Consumption: 6.1 VA running, 1.2 VA holding
• Close-Off Pressure: 200 psig
• Flow Characteristic: Equal percentage
• Operating Conditions: -40 F to 140 F (-40 C to 60 C)
• Electrical Connection: 48 in. 18 AWG appliance cable with integral 3/8 in. FMC connectors
