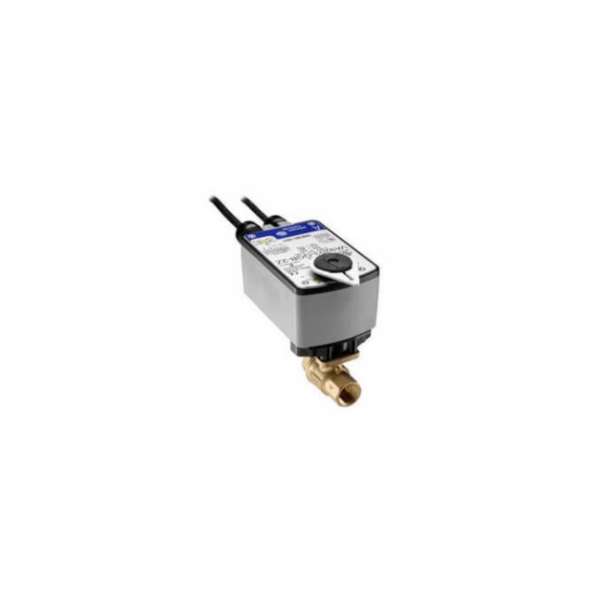

Johnson Controls VG1241BN+923AGA Model VG1241BN Two-Way Plated Brass Trim NPT End Connections Ball Valve with VA9203-AGA-2Z Spring-Return Open Without Switch Electric Actuator

Product Description

The Johnson Controls VG1241BN+923AGA is a two-way brass valve equipped with a VA9203-AGA-2Z electric actuator designed for HVAC systems. This assembly is engineered to regulate the flow of hot or chilled water and, in some cases, low-pressure steam in response to a controller's demand.

• Designed for on/off, floating, or proportional control.
• Compatible with Johnson Controls VA9104, M9106, M9109, and M9100 series non-spring return actuators.
• Suitable for DN15 through DN50 pipe sizes.

Product Highlights

This valve features a forged brass body providing a static pressure rating of 580 psig, ensuring robust performance and reliability in demanding environments. Its compatibility with various Johnson Controls actuators allows for flexible application across different HVAC control systems.

Technical Specifications

• Body Material: Brass
• Connection Type: NPT threaded end connections
• Size: 1/2 inch through 2 inches
• Actuator Type: VA9203-AGA-2Z Spring-Return Open Without Switch Electric Actuator
• Control Type: On/Off, floating, or proportional control options
