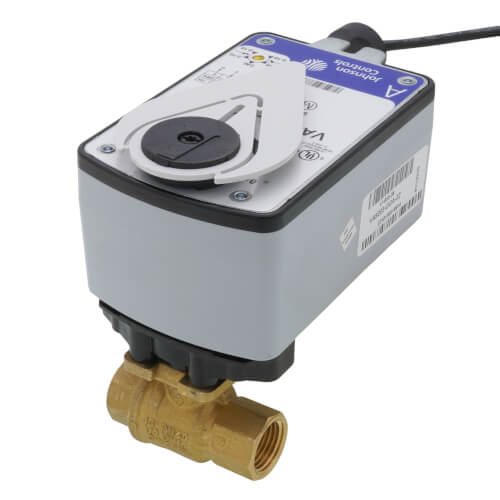

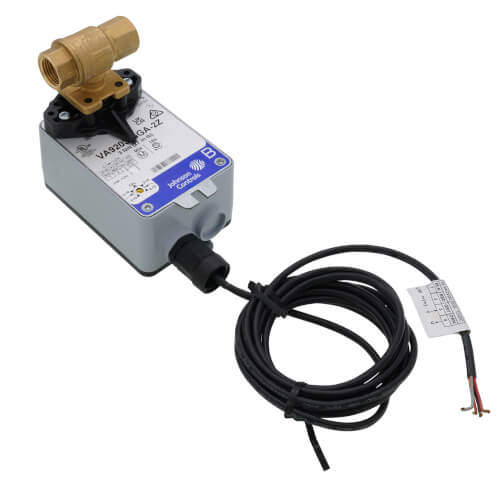

Johnson Controls VG1241AG+923GGA Two-Way Brass Trim Ball Valve VA9203-GGA-2Z Actuator

Product Description

The Johnson Controls Model VG1241AG+923GGA Ball Valve ensures precise regulation of HVAC water flow systems. Constructed with a robust forged brass body, the valve is designed for both chilled and hot water applications. Paired with Johnson Controls' electric actuators, it offers reliable performance in HVAC systems.

• Compatible with VA9104, M9106, M9109, and M9100 Series Non-Spring-Return Actuators
• Supports VA9203 and VA9208 Series Spring-Return Electric Actuators
• Offers On/Off, Floating, or Proportional Control functionalities

Product Highlights

Equipped with high-grade brass, the valve can endure up to 580 psig static pressure. Its adaptability for various control types makes it an ideal choice for extensive HVAC system requirements.

Product Information

Standard Information

• Control Range: Proportional, on/off, floating
• Pressure Rating: 580 psig static pressure capability

Technical Specifications

• Body Material: Forged Brass
• Connection Type: Threaded NPT
• Size: 1/2 inch NPT
• Actuator Types: VA9203 Proportional, with or without switch
• Flow Control: Hot/chilled water, low-pressure steam
• Temperature Range: 23°F to 203°F
