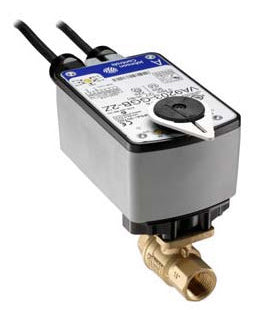

Johnson Controls VG1241AG+923BUA Two-Way Brass Ball Valve with Electric Actuator 1/2 inch NPT

Product Description

The Johnson Controls VG1241AG+923BUA Two-Way Brass Ball Valve efficiently regulates the flow of hot or chilled water within HVAC systems. This valve is designed for easy integration with various Johnson Controls electric actuators, providing reliable and accurate flow management.

• Designed for both hot and chilled water applications
• Compatible with Johnson Controls VA9104, M9109, and similar actuator models
• Supports sizes from 1/2 inch to 2 inches for diverse system requirements

Product Highlights

Optimal for HVAC systems needing precise water flow regulation paired with robust brass construction for durability. The valve offers on/off, floating, or proportional control, responding effectively to varying demands.

Product Information

Technical Specifications

• Body Material: Forged Brass
• Connection Type: NPT threaded
• Actuator Compatibility: VA9104, M9106, M9109, M9100, VA9203, VA9208
• Pressure Rating: 580 psig static
• Flow Capacity (Cv): 4.7
• Temperature Range: 23° to 203°F
