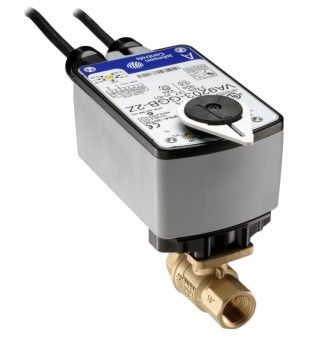

Johnson Controls VG1241AG+923AGB Ball Valve 24V ON/OFF/FLT

Product Description

The Johnson Controls VG1241AG+923AGB Ball Valve is designed to regulate the flow of hot or chilled water and low-pressure steam in response to HVAC system demands. The product integrates the VG1241AG two-way plated brass trim NPT end connections ball valve with the VA9203-AGB-2Z spring-return electric actuator.

• Forged Brass Body: Offers 580 psig static pressure rating
• 2-Way Configuration: Suitable for various HVAC applications
• Spring-Return Actuator: Ensures reliable operation

Product Highlights

This ball valve is ideal for controlling the flow of hot or chilled water and low-pressure steam in HVAC systems. The VG1241AG+923AGB integrates a forged brass body with a 580 psig static pressure rating and a spring-return actuator (VA9203-AGB-2Z) for reliable performance.

Product Information

Standard Information

• Manufacturer: Johnson Controls
• Model: VG1241AG+923AGB

Technical Specifications

• Forged Brass Body: 580 psig static pressure rating
• Size: 1/2 to 2 inches (DN15 to DN50)
• Configuration: Two-way and three-way
• Actuator: VA9203-AGB-2Z spring-return
• Pressure Rating: 580 psig
• Electric Actuator: On/Off, floating, proportional control
• Flow Capacity: 4.7 Cv
• Voltage: 24V
