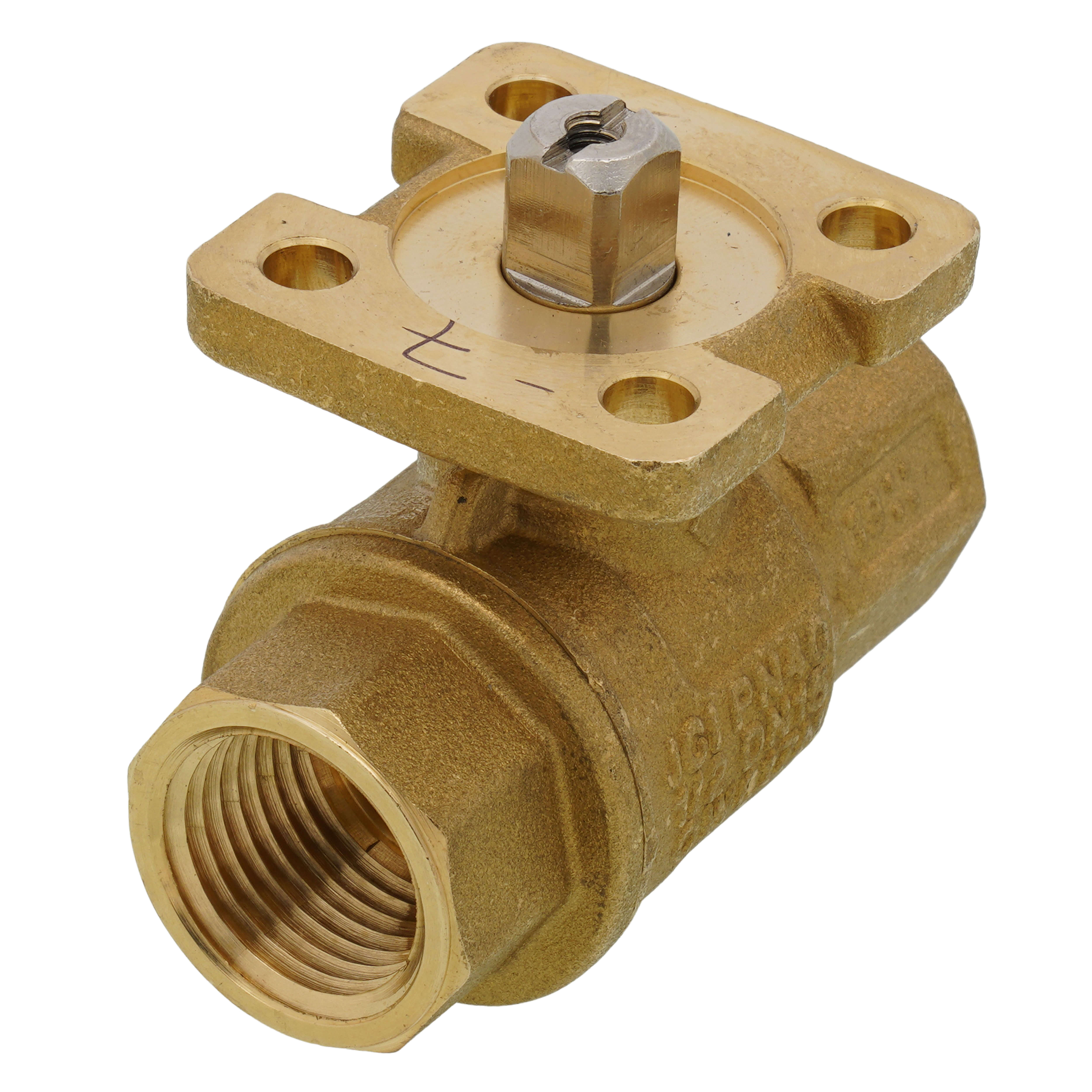

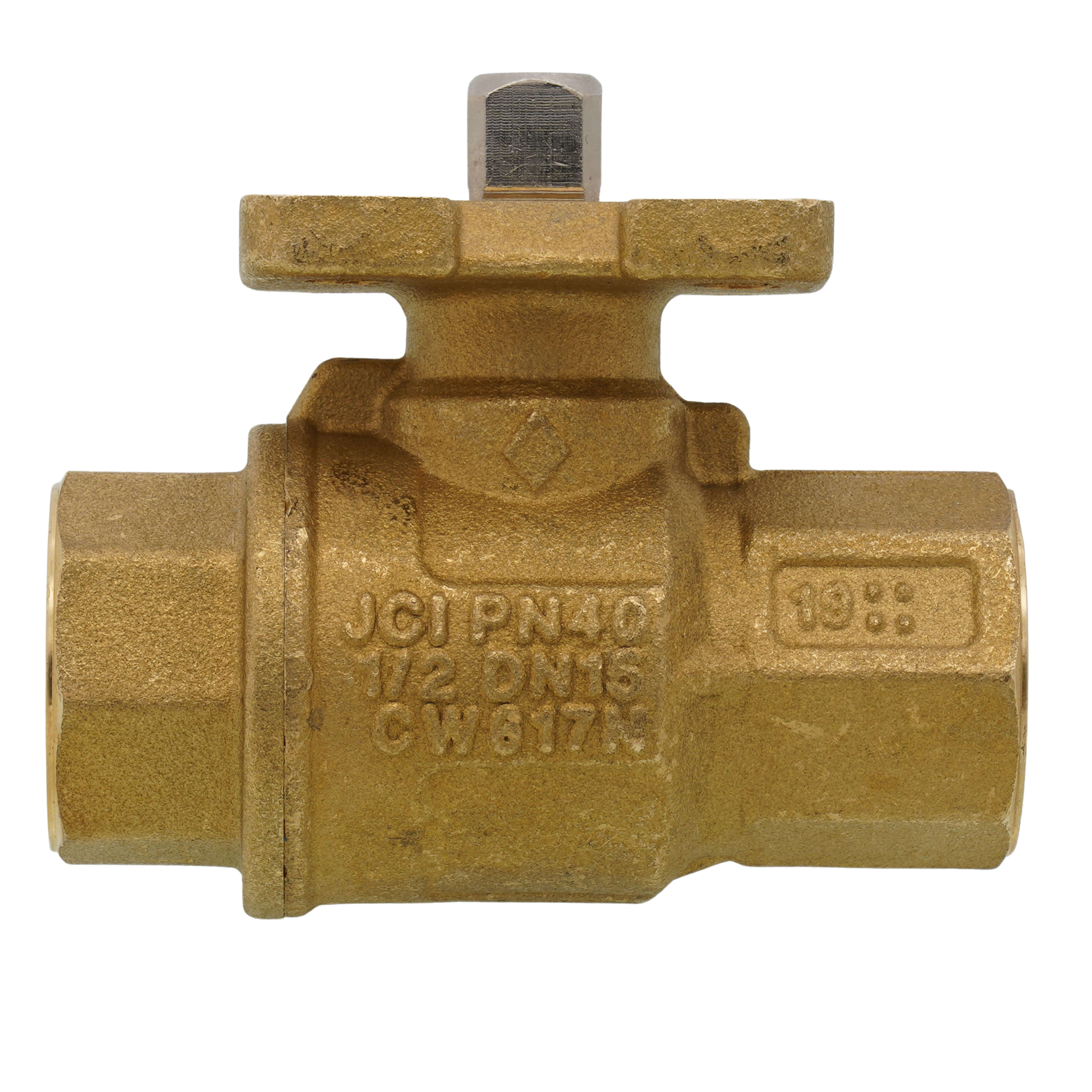

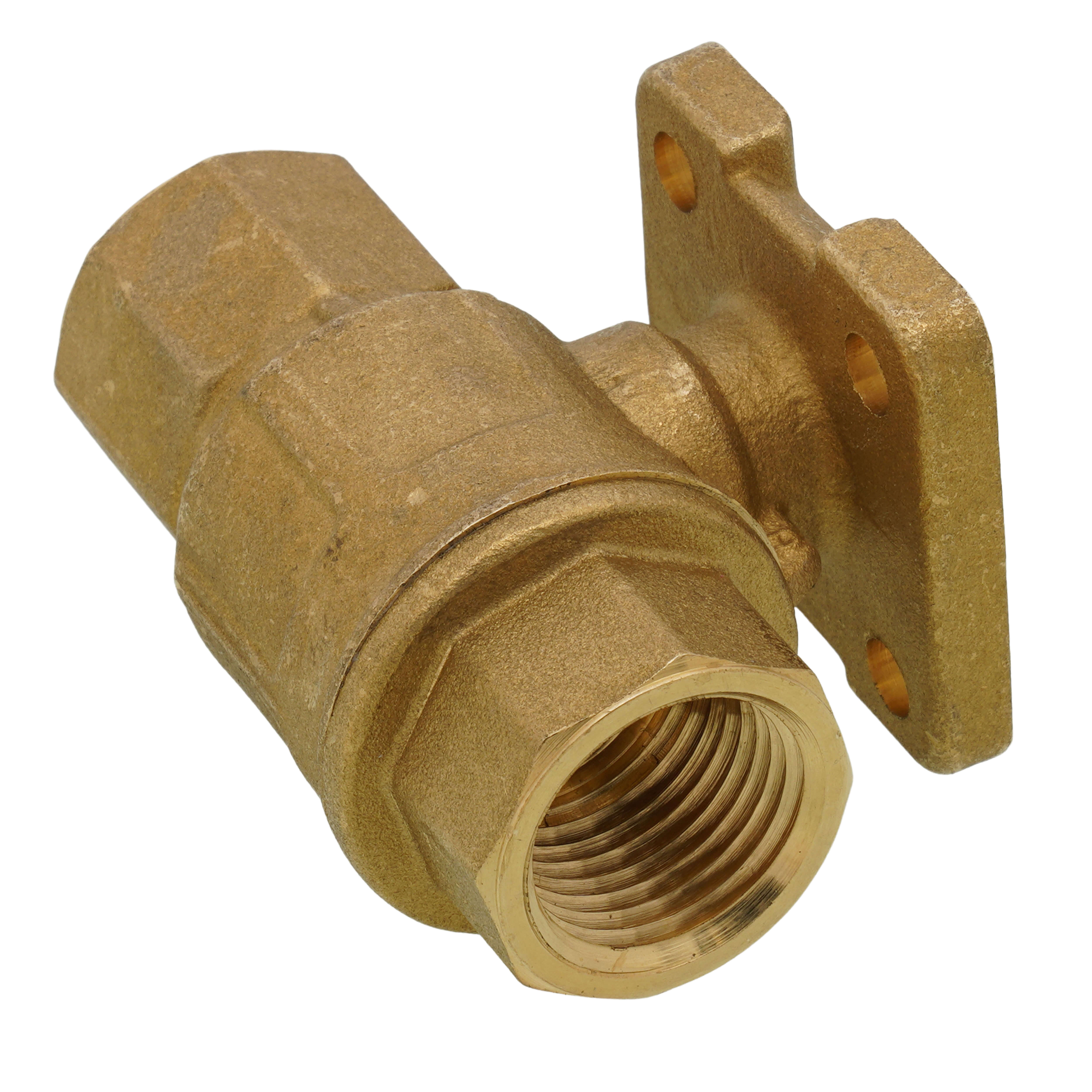

Johnson Controls VG1241AD 1/2 Inch 2W Ball Valve 1.2CV Brass Trim Less Actuator

Product Description

The Johnson Controls VG1241AD Ball Valve is engineered for precision flow control in HVAC systems. This valve is ideal for regulating the flow of hot or chilled water and, in some models, low-pressure steam. Compatible with Johnson Controls Electric Actuators, it offers versatile control options including on/off, floating, and proportional responses.

• Robust brass construction ensures durability and corrosion resistance.
• Equipped with dual EPDM stem seals and graphite filled PTFE ball seats to prevent leaks.
• Compact design facilitates easy installation in limited spaces.

Product Highlights

Designed for HVAC applications, this ball valve supports a 1.2CV flow capacity and can be mounted directly to various Johnson Controls Non-Spring and Spring Return Electric Actuators. Its maintenance-free setup means no further adjustments or packing is required after installation.

Product Information

Technical Specifications

• Brand: Johnson Controls
• Model: VG1241AD
• Type: Ball Valve
• Size: 1/2 Inch NPT
• Body Material: Chrome Plated Brass
• Connection Type: Threaded
• Temperature Range: -22 to 212 degrees Fahrenheit
