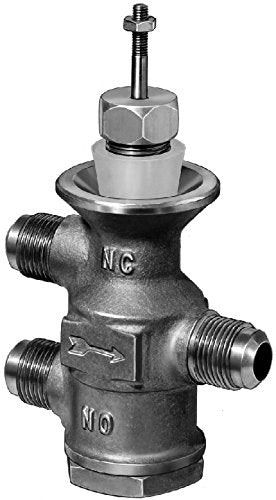

Johnson Controls VB-4332-5 Brass Flare Valve Electric Three-Way Mix Style 2.0 Cv

Product Description

The Johnson Controls VB-4332-5 Brass Flare Valve is designed for precise control of fluid flow in HVAC systems, featuring a three-way mix style and a Cv rating of 2.0. Optimized for use with both hot and cold water, this product ensures consistent performance and durability.

• Easy installation without soldering using 1/2 in. OD SAE 45 flare connections.
• Equipped with non-adjustable ring packs for enhanced reliability and longevity.
• Rated for 400 psig static pressure, suitable for various building locations.

Product Highlights

This valve is capable of being fitted with different types of actuators according to application needs, including pneumatic and electric options. Each valve undergoes rigorous testing to confirm its reliability and to ensure it offers tight shutoff, which contributes to occupant comfort and energy savings.

Technical Specifications

• Brand: Johnson Controls
• Model Number: VB-4332-5
• Type: Three-Way Brass Flare Valve
• Actuator Compatibility: VA-805x Series (sold separately)
• Pressure Rating: 400 psig static
• Flow Coefficient: 2.0 Cv
• Connection Type: 1/2 in. OD SAE 45 flare
