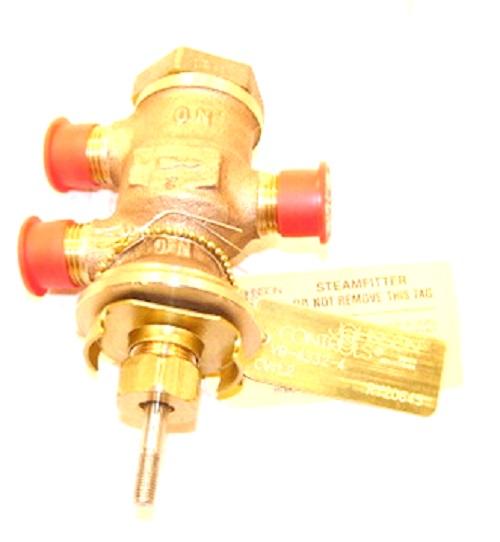

Johnson Controls VB-4332-4 Brass Flare Valve with Electric Actuator, 1/2 Inch Three-Way, Mix Style, 1.2 Cv

Product Description

Optimize your HVAC system with the Johnson Controls VB-4332-4, a brass flare valve that ensures reliable regulation of hot or cold water flow. Designed for small HVAC units, this mixing valve pairs with both pneumatic and electric actuators, providing flexibility and performance.

• 1/2 inch SAE 45 flare connections for easy maintenance and no solder installation.
• Non-adjustable ring pack packing's guaranteeing long life and reliability.
• Tested rigorously for secure shutoff, promoting enhanced occupant comfort and energy savings.

Product Highlights

Featuring robust construction, the VB-4332-4 valve supports up to 400 psig static pressure without restricting installation locations. Its design is optimized for quick, easy installation and minimal maintenance.

Technical Specifications

• Brand: Johnson Controls
• MPN: VB-4332-4
• Material: Brass
• Connection Type: 1/2 inch OD SAE 45 flare
• Flow Coefficient (Cv): 1.2
• Operating Pressure: Up to 400 psig
• Actuator Types Compatible: V-3000-1 (exposed), V-3000-2 (enclosed, order separately), VA-805x Series (field or factory-coupled)
