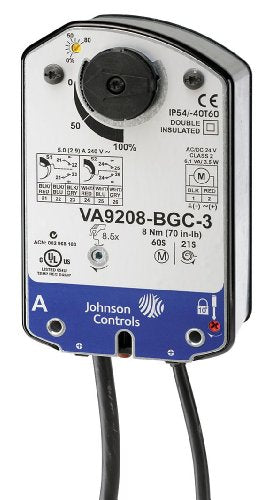

Johnson Controls VA9208-AGC-3 VA9208 Series On/Off and Floating Point Electric Spring-Return Actuator 24 VAC 2 SPDT 5.0 A at 240 V 48 18 AWG Appliance Cable

Product Description

The Johnson Controls VA9208-AGC-3 is an electric spring-return actuator designed for HVAC applications. This actuator provides precise control and positioning for Johnson Controls VG1000 Series ball valves measuring one and one-quarter, one and one-half, and two inches. The actuator utilizes a mechanical spring-return system to ensure effective torque delivery with or without electrical power.

• Direct mounting using a single screw
• Electronic stall detection for improved operation
• Double insulated construction for safety

Product Highlights

This actuator allows for easy installation and reliable performance in HVAC systems.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: VA9208-AGC-3

Technical Specifications

• Power Supply: 24 VAC
• Output Type: 2 SPDT
• Rated Current: 5.0 A at 240 V
• Electrical Cable: 48 inches, 18 AWG
• Connector Type: Integral 3/8 FMC
