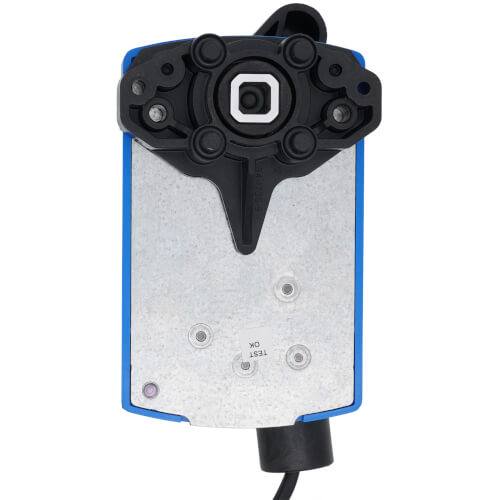

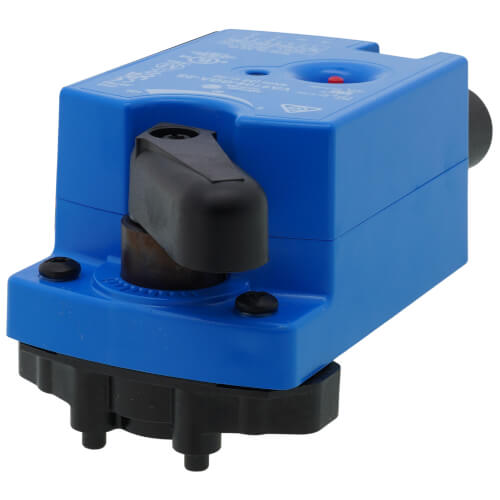

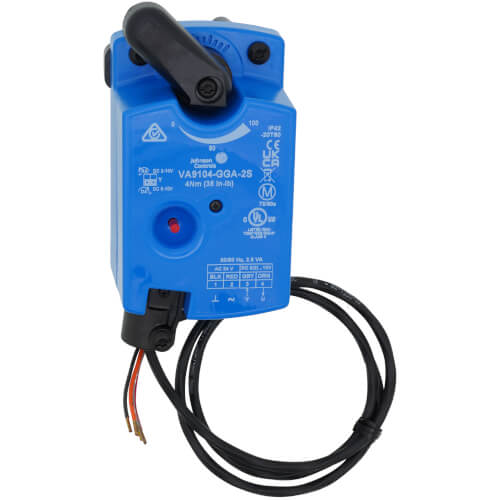

Johnson Controls VA9104-GGA-2S Direct Mount Valve Actuator 35 lb-in.

Product Description

The Johnson Controls VA9104-GGA-2S is a direct-mount, non-spring return valve actuator designed to operate on AC twenty-four volts power. This actuator provides precise positioning for Johnson Controls VG1000 Series ball valves, suitable for heating, ventilating, and air conditioning (HVAC) applications.

• Running torque rated at thirty-five lb-in for reliable performance.
• Nominal travel time of sixty seconds for ninety degrees rotation at sixty hertz.
• Constructed for easy installation with a single screw and includes a manual override feature for flexibility.

Product Highlights

This actuator's design allows for straightforward mounting and effective control of HVAC systems, making it a practical choice for professionals in the field.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VA9104-GGA-2S
• Power Consumption: 2.9 VA
• Operating Conditions: -4 F to 140 F

Technical Specifications

• Torque Rating: 35 lb-in
• Electrical Connection: 48 in. UL 444 Type CMP Plenum Rated Cable
• Housing Rating: NEMA 2, IP42
• Weight: 1.78 lbs
• Dimensions: 8.2 inches (L) x 5 inches (W) x 4.55 inches (H)
