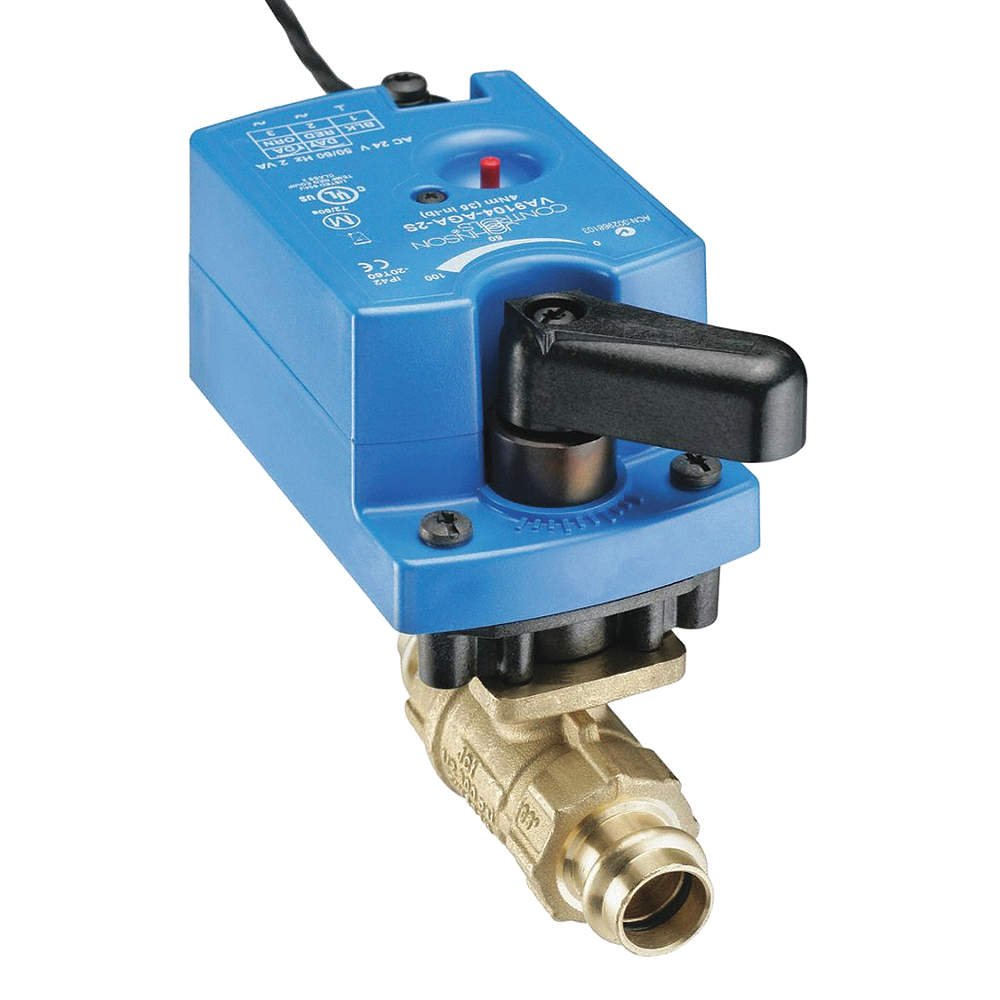

Johnson Controls VA9104-AGA-3S Electric Actuator, 70 lb., On-Off, 24VAC

Product Description

The Johnson Controls VA9104-AGA-3S is an electric actuator that operates on 24VAC power. This actuator is used for controlling Johnson Controls VG1000 Series ball valves in HVAC systems. It is designed for efficient valve positioning and has a torque rating of 35 lb-in. The travel time is sixty seconds at sixty Hertz for ninety degrees of movement.

• Direct-mount installation with a single screw for quick setup.
• Manual override feature for independent operation.
• Rated for 100,000 cycles, ensuring durability in various applications.

Product Highlights

This actuator is suitable for heating, ventilation, and air conditioning applications where accurate valve control is essential.

Product Information

Standard Information

• Brand: Johnson Controls
• Model Number: VA9104-AGA-3S

Technical Specifications

• Power Supply: 24VAC
• Running Torque: 35 lb-in (4 N·m)
• Travel Time: 60 seconds at 60 Hz
• Cycle Rating: 100,000
• Noise Level: 35 dB
• Dimensions: 5.59 x 4.13 x 3.62 inches
• Weight: 1.19 lbs
