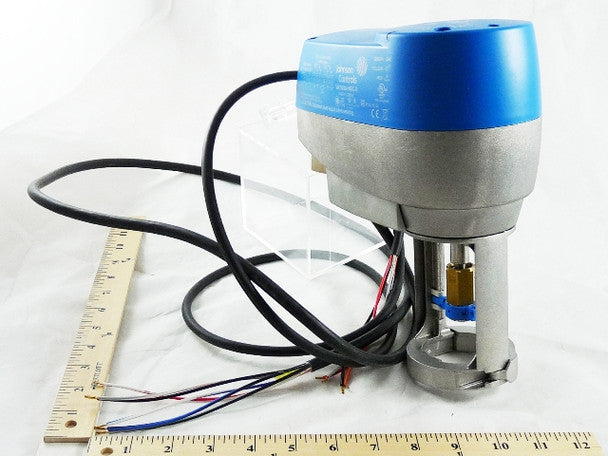

Johnson Controls VA7830-HGC-2 Direct Mount Valve Actuator 180 lb-in.

Product Description

The Johnson Controls VA7830-HGC-2 is a direct mount valve actuator designed for optimal control in HVAC systems. This actuator features a spring return mechanism and operates on 24 VAC. Its design allows for both on/off and proportional control using a 0 to 10 VDC signal.

• Automatic stroke adjustment for easy commissioning
• Manual override for straightforward valve control
• Brushless motor for efficient operation

Product Highlights

This actuator provides reliable performance and energy efficiency in various applications, including commercial and industrial HVAC systems. It supports easy installation and maintenance.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: VA7830-HGC-2

Technical Specifications

• Power Consumption: 3 VA
• Operating Conditions: 23 F to 131 F (-5 C to 55 C)
• Electrical Connection: Forty-eight inches UL 758 Type AWM Halogen Free Cable with eighteen AWG conductors
• Housing: NEMA 2, IP54
