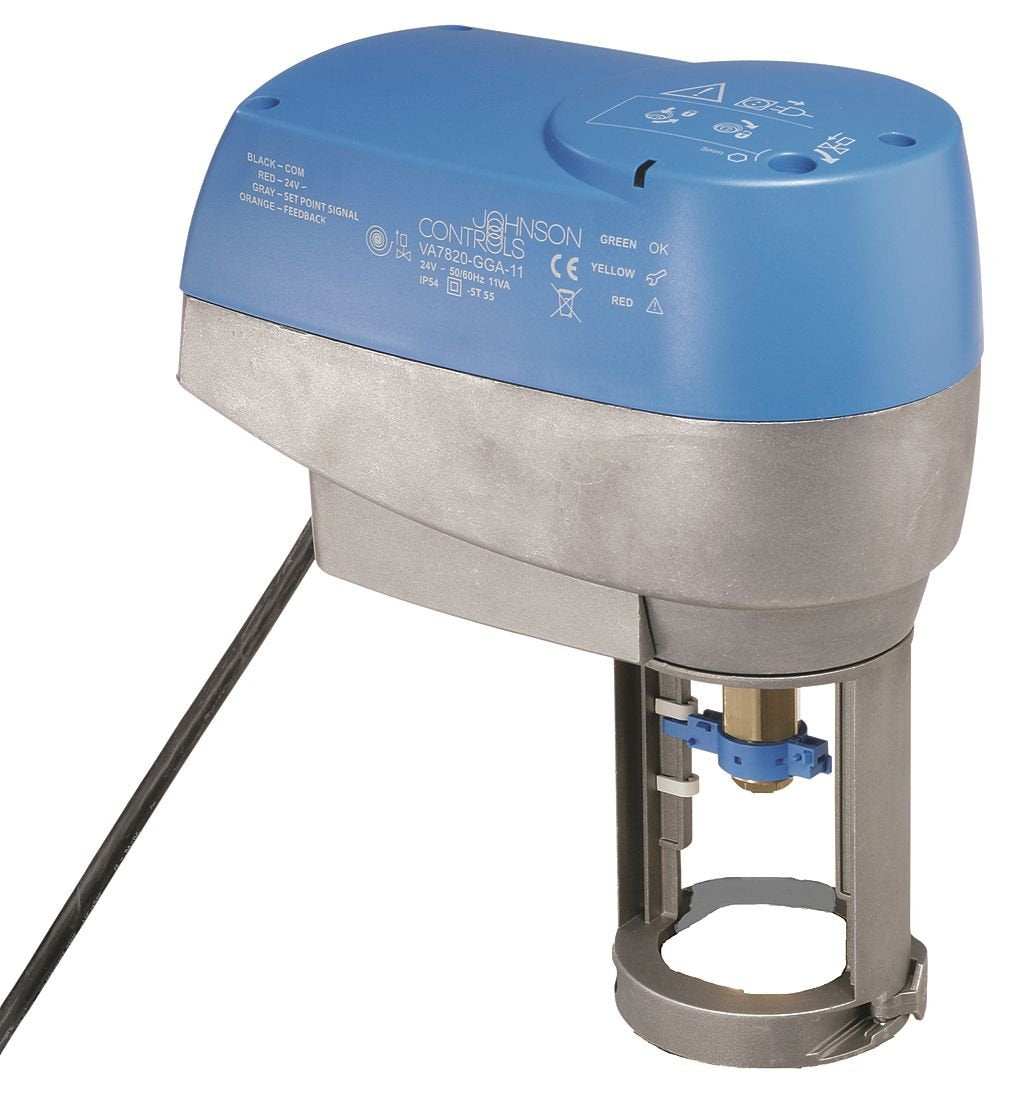

Johnson Controls VA7820-HGC-2 VA7800 Series Electric Valve Actuator, 11 VA Rating, On/Off Control, 2 SPDT, 1A, 3A Resistive, 1/4 HP

Product Description

The Johnson Controls VA7820-HGC-2 is an electric valve actuator designed for use in HVAC and industrial applications. It operates with a voltage of 24 V AC and can handle a torque of one hundred eighty in-lb. The actuator features an On/Off control mechanism, along with two SPDT auxiliary switches. This model is capable of controlling dampers and valves efficiently.

• Controls VG7000 Series Bronze Globe Valves in HVAC systems
• IP54 rated enclosure for varied environments
• Brushless motor for energy efficiency

Product Highlights

The VA7820-HGC-2 actuator ensures precise control in HVAC installations, providing reliability and versatility in serving various industrial needs.

Product Information

Standard Information

• Manufacturer: Johnson Controls Inc
• Model Number: VA7820-HGC-2

Technical Specifications

• Voltage: 24V AC
• Signal Type: Proportional/On-Off/Floating
• Torque: 180 in-lb
• Cycle Time: 114 sec
• Height: 9 inches
• Width: 4.5 inches
• Depth: 8.375 inches
• Auxiliary Switch Type: 2 SPDT
• Power Consumption: 11 VA
• Ambient Temperature Range: Up to 131 degrees F
• Includes: Valve Linkage
• Type of Actuator: Spring Return
• For Use With: Globe Valves
• Electrical Connections: Cable
