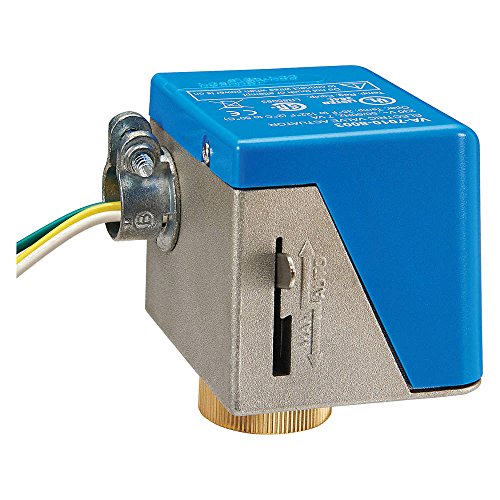

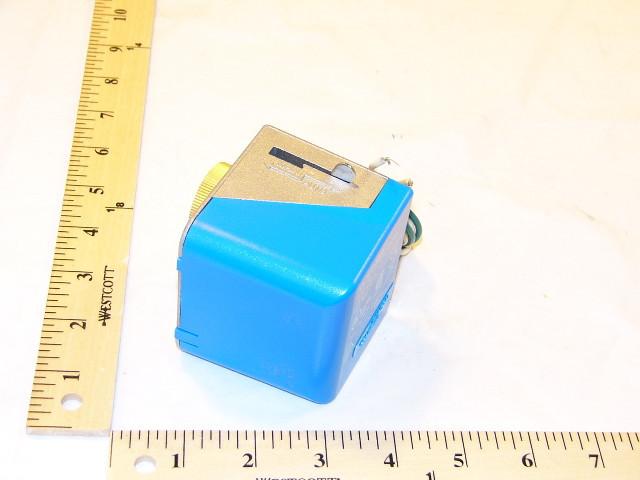

Johnson Controls VA-7010-8003 Electric Actuator 230V

Product Description

This Johnson Controls VA-7010-8003 Electric Actuator operates on 230V for controlled and efficient functioning. Designed for HVAC applications, it's perfect for both commercial and residential installations.

• Two-position control with manual override
• Quiet operation with AC stall type motor
• Compact design and flexible wiring options

Product Highlights

The Johnson Controls Electric Actuator offers vital services in HVAC systems, providing reliable opening and closing of valves. Suitable for mounting onto VG4000 and VG5000 series zone valves, its side lever allows manual operation for easy servicing.

Product Information

Standard Information

• Manufacturer: Johnson Controls
• MPN: VA-7010-8003

Technical Specifications

• Action: On/Off
• Voltage: 230 VAC
• Full Stroke Time: On - Nominal 10 Sec, Off - Nominal 5 Sec
• Enclosure: NEMA 1
• Lead Wires: 20 inches
• Weight: Approximately 1.24 lbs
• Dimensions: 9.01 inches height x 8.01 inches width x 8.01 inches length
