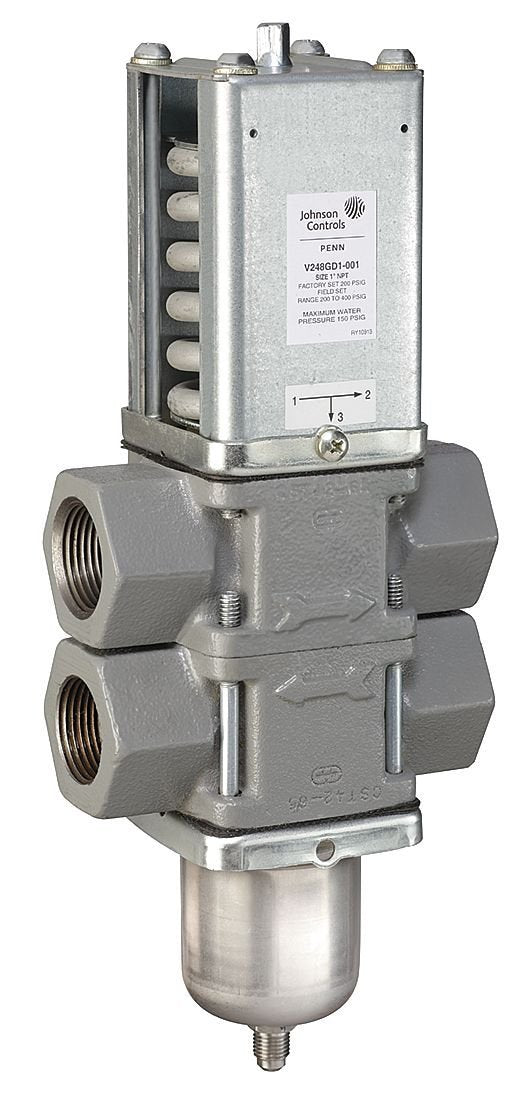

Johnson Controls V248GE1-001C Penn V248 Series Three-Way Water-Regulating Valve, North American Standard, Range 200 to 400 psi, Direct Acting, Commercial, Style 5, 1-1/4 NPT Screw

Product Description

The Johnson Controls V248GE1-001C is a three-way water-regulating valve intended for commercial use. It is built to manage water flow in high-pressure systems. This valve operates efficiently with refrigerant systems that require head pressure control. It effectively regulates water flow at pressure levels from two hundred to four hundred psi.

• No close fitting or sliding parts in water passages.
• Accessible range spring for easy adjustment.
• Take-apart construction for maintenance.

Product Highlights

This valve features a pressure-balanced design and is made from corrosion-resistant materials to ensure durability in various applications.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: V248GE1-001C

Technical Specifications

• Material: Copper
• Exterior Finish: Copper, Nickel
• Inlet Connection Type: National Pipe Tapered
• Pressure Range: 200 to 400 psi
• Design Pressure: 630 psig
• Port Size: 1-1/4 inches
• Minimum Fluid Temperature: -4 degrees Fahrenheit
