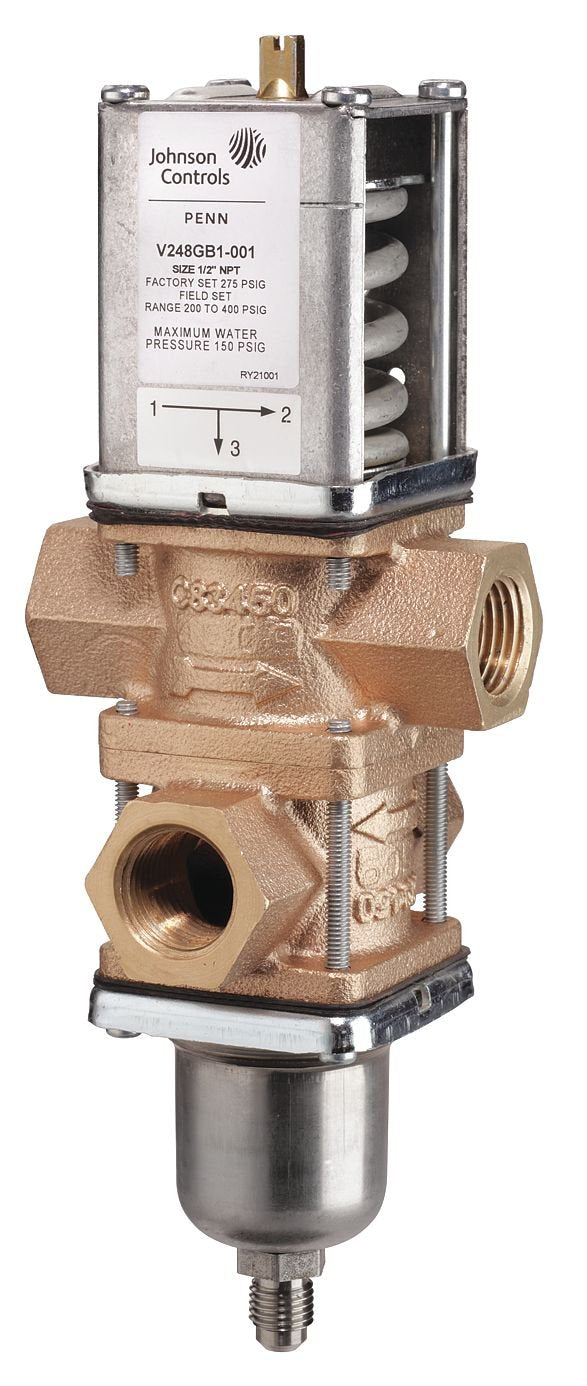

Johnson Controls V248GD1-001C Penn V248 Series Three-Way Water-Regulating Valve, Range 200 to 400 psi

Product Description

The Johnson Controls V248GD1-001C is a three-way water-regulating valve. It is designed for use in high-pressure refrigerant systems, specifically for R-410A applications. This valve helps control water flow and refrigerant head pressure.

• Pressure range of 200 to 400 psi.
• Durable construction with no close fitting or sliding parts.
• Accessible range spring for quick adjustments.

Product Highlights

The V248GD1-001C valve features a pressure-balanced design and corrosion-resistant internal parts, making it suitable for demanding industrial environments.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: V248GD1-001C

Technical Specifications

• Item Number: V248GD1-001C
• Connection Size: 1 inch NPT
• Design Pressure: 630 psig
• Min Fluid Temp: -4 degrees Fahrenheit
• Max Pressure: 400 psi
• Application: Head pressure control for water-cooled systems
• Materials: Brass body with stainless steel trim
