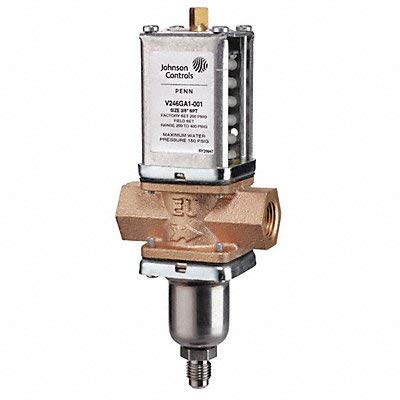

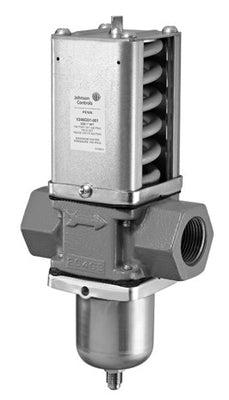

Johnson Controls V246GS1-001C Penn V246 Series Two-Way Pressure-Actuated Water-Regulating Valve

Product Description

The Johnson Controls V246GS1-001C is a two-way pressure-actuated water-regulating valve designed for high-pressure refrigerant applications. This valve is ideal for controlling water flow in HVAC systems, enhancing system efficiency and reliability.

• Direct acting with a 2 inch flange connection
• Operational from -4 degrees Fahrenheit, up to 630 psig design pressure
• Suitable for commercial and industrial installations

Product Highlights

Constructed from robust cast iron, the V246GS1-001C ensures long-lasting performance under demanding conditions. Its compatibility with SEC99 Series enhances versatility in high-pressure refrigerant cooling applications.

Product Information

Standard Information

• Manufacturer: Johnson Controls
• MPN: V246GS1-001C

Technical Specifications

• Connection Type: Flange
• Port Size: 2 inches
• Minimum Fluid Temperature: -4 degrees Fahrenheit
• Set Points: 200 to 400 psi
• Construction Material: Cast Iron
