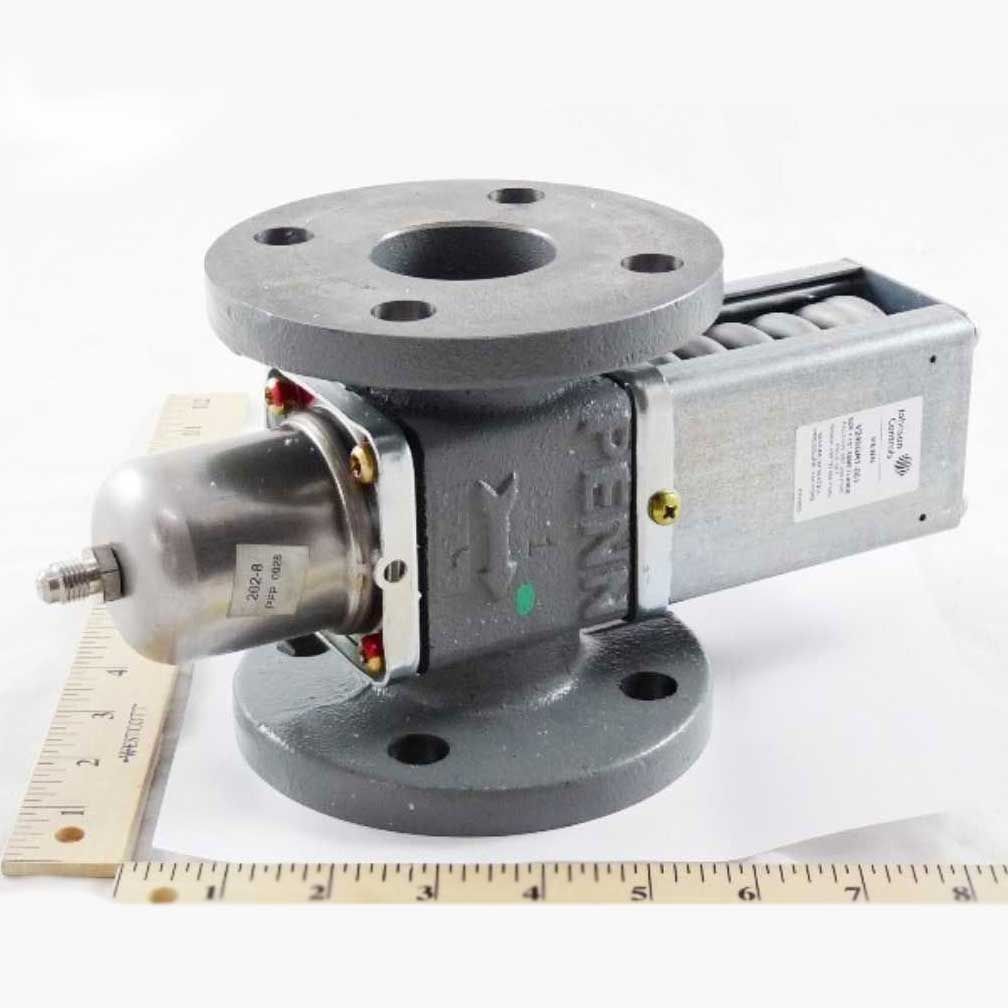

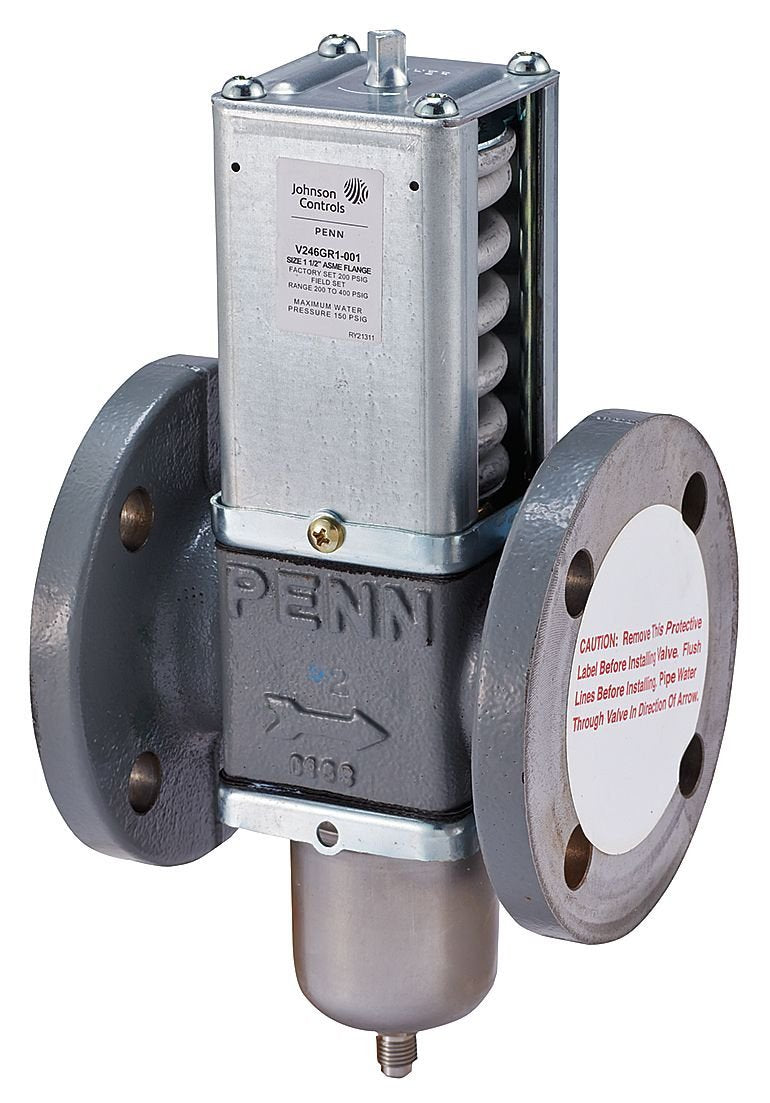

Johnson Controls V246GR1-001C Penn V246 Two-Way Water-Regulating Valve North American Direct Acting Commercial 1-1/2 inch Flange

Product Description

The Johnson Controls V246GR1-001C is a top-of-the-line water-regulating valve designed for effective management of fluid pressure systems in a commercial setup. This model ensures optimal performance through its pressure-actuated, two-way valve system, ideal for high-pressure refrigerants.

• Robust cast-iron construction ensures longevity and reliability.
• Direct acting mechanism with an adjustable operating range of 200 to 400 psi.
• Engineered to withstand pressures up to 630 psig with a minimum fluid temperature capability of -4 Degrees Fahrenheit.

Product Highlights

Featuring a flanged connection design, the Johnson Controls V246GR1-001c is particularly noted for its robust construction and ability to handle significant pressure variations without compromising the system's integrity. Its modular design facilitates easy installation and maintenance, crucial for minimizing downtime in commercial applications.

Product Information

Standard Information

• MPN: V246GR1-001C
• Brand: Johnson Controls
• Category: Ball Valves

Technical Specifications

• Size: 1-1/2 inch Flanged
• Pressure Range: 200 to 400 psi
• Max Pressure: 630 psig
• Material: Cast Iron
• Type: Direct Acting
• Design Temperature: -4 Degrees F
• Weight: 14.47 lbs
