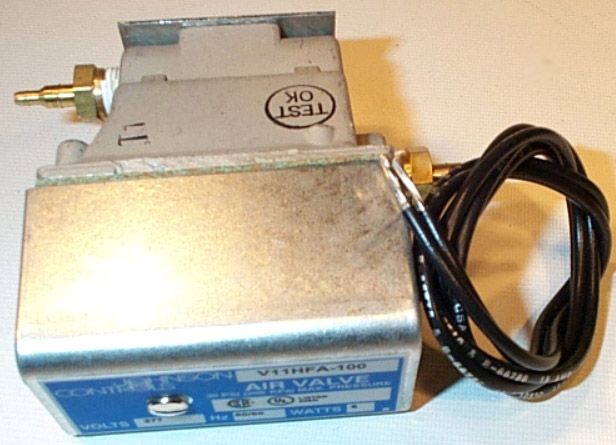

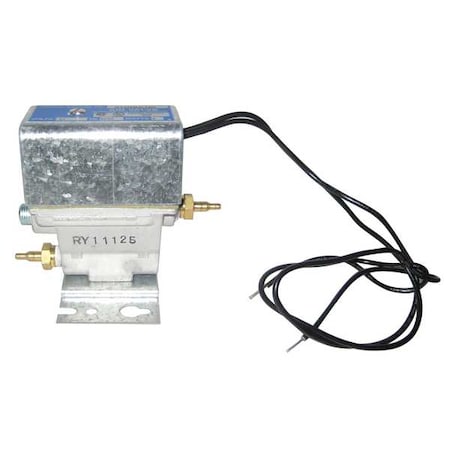

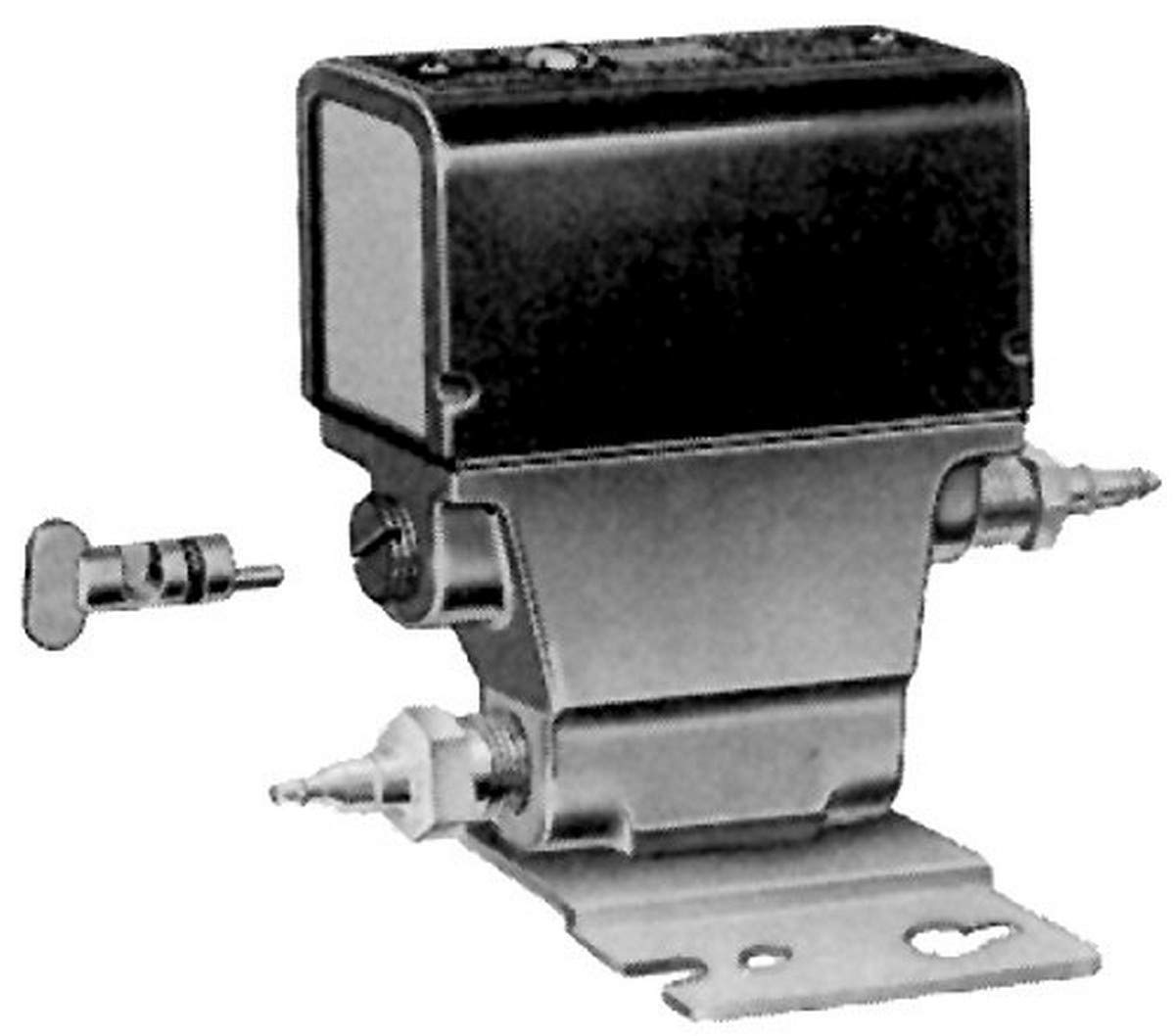

Johnson Controls V11HFA-100 Three-Way Solenoid Air Valve 277V

Product Description

The Johnson Controls V11HFA-100 is a three-way solenoid air valve, designed for reliable operation in pneumatic control systems. This valve supports a voltage of 277V AC and is widely used in diverse industrial settings.

• Two-position action for versatile controls
• Marked piping connections: N.O., N.C., and COM
• Capable of manual operation with key insertion for emergencies

Product Highlights

This valve provides efficient regulation of air flows, ensuring optimal system performance. It's designed for ease of integration into various pneumatic setups.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: V11HFA-100

Technical Specifications

• Voltage: 277V AC
• Connections: Three-way with markings
• Action: Two-position
• Operational Range: 0 to 25 psi control air pressure
• Max. Air Pressure: 30 psi
• Temperature Range: 32 to 140 Degrees F
• Dimensions: Height 3 1/4 inches, Width 2 1/2 inches, Depth 1 1/2 inches
• Weight: 0.90 lbs
