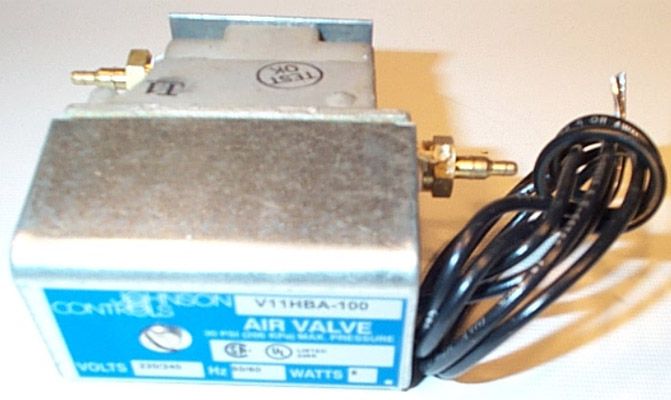

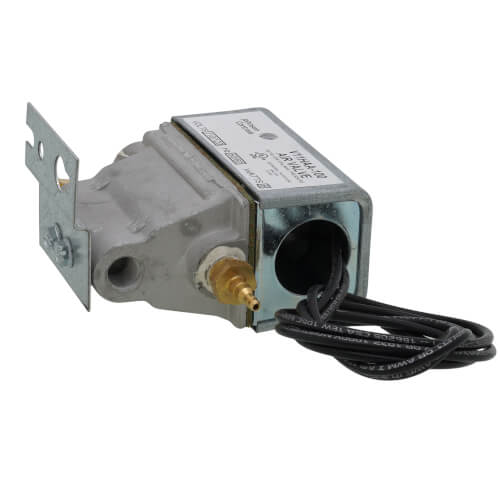

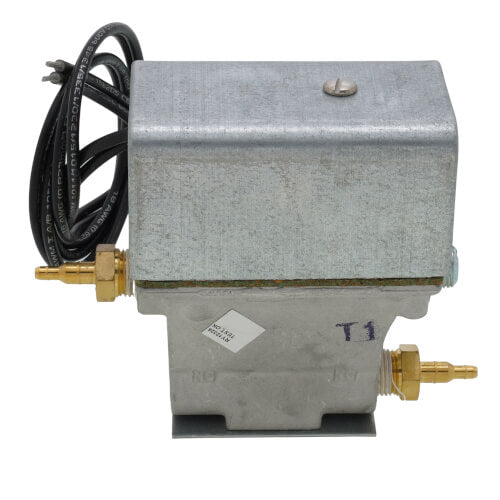

Johnson Controls V11HBA-100 Solenoid Air Valve 240V 3-WAY/2-WAY AIR VLV

Product Description

The Johnson Controls V11HBA-100 is a solenoid air valve with a voltage rating of 240V, suitable for both 3-way and 2-way applications. This valve is primarily used in HVAC systems to control air flow based on pneumatic control requirements.

• Designed for 220 to 240V operation.
• Compact and lightweight, allowing for versatile installation.
• Compatible with various pneumatic systems.

Product Highlights

The V11HBA-100 offers a positive air seal and can often be manually operated for testing and checkout purposes. It is suitable for mounting in any position, making it a flexible option for various setups.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: V11HBA-100

Technical Specifications

• Voltage: 220 to 240V
• Frequency: 50 to 60 Hz
• Operating Pressure: 0 to 20 PSIG
• Maximum Pressure Rating: 30 PSIG
• Power Consumption: 6 Watt
• Weight: 0.88 lbs
• Dimensions: 4.25 inches (L) x 3.75 inches (W) x 2.85 inches (H)
• Material: Die cast aluminum body, cold rolled steel cover
