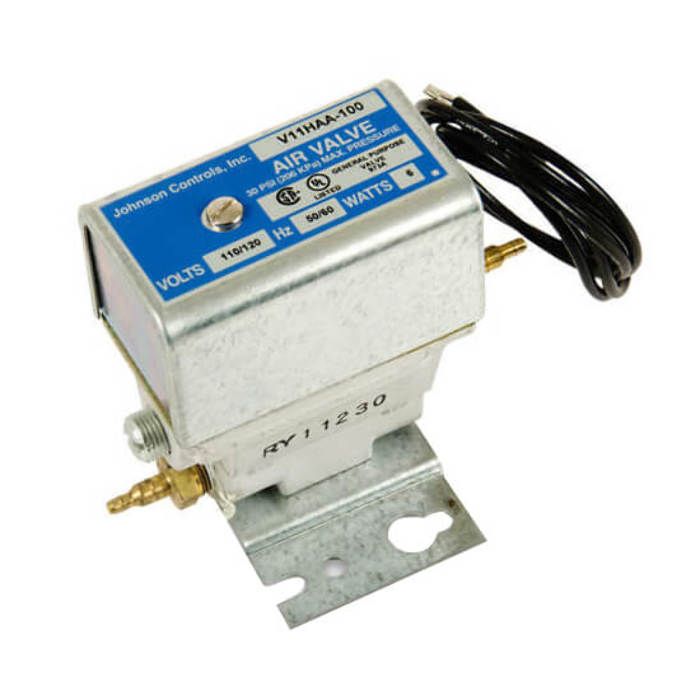

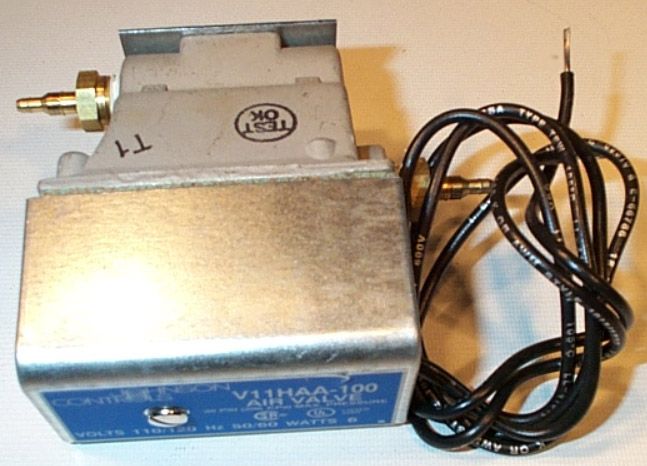

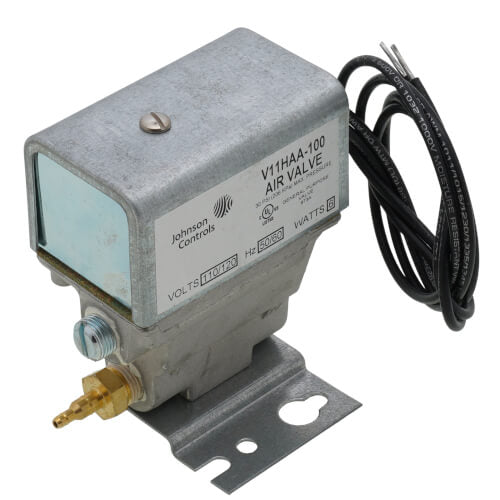

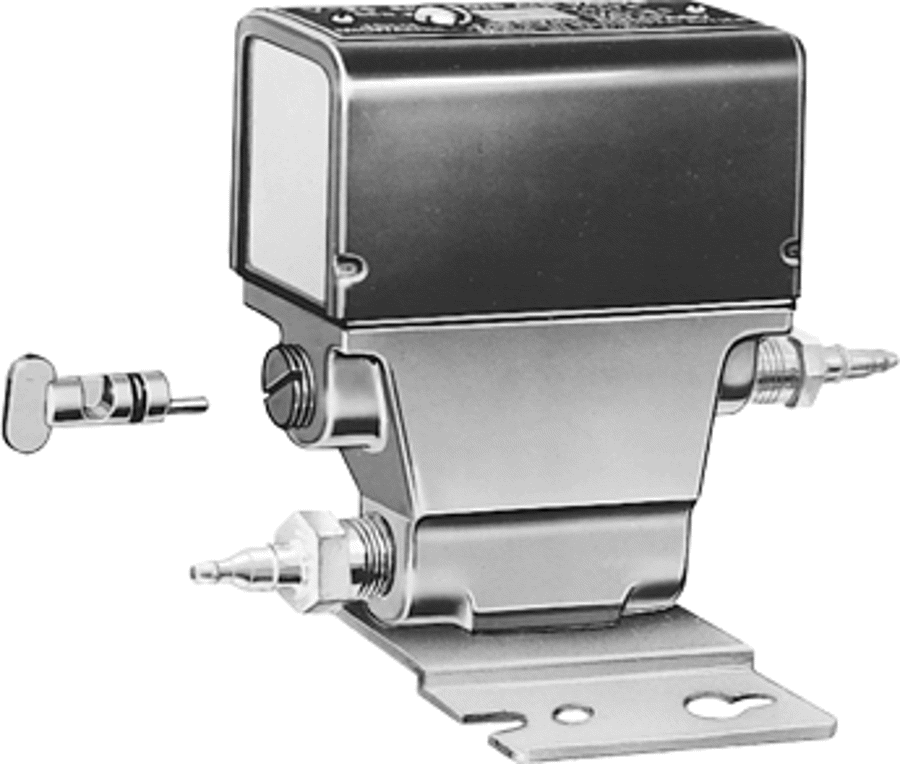

Johnson Controls V11HAA-100 Solenoid Air Valve 120V 3-Way 1/4 Barb

Product Description

The Johnson Controls V11HAA-100 is a 120V solenoid air valve designed for pneumatic control in HVAC systems. It features a three-way configuration that directs airflow effectively between multiple pathways. This ensures precise regulation of air flow for optimal system performance.

• Three-port connection for versatile air flow management
• Normally open design with easy manual operation
• Compact and lightweight for convenient installation

Product Highlights

The V11HAA-100 is suitable for a wide range of HVAC applications, ensuring reliable and efficient operation under various conditions.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: V11HAA-100

Technical Specifications

• Voltage: 120V
• Max Pressure: 30 Psig
• Pressure Range: 0-20 Psig
• Dimensions: 4.4 inches (Length) x 3.85 inches (Width) x 2.85 inches (Height)
• Weight: 0.91 lbs
• Operation Type: Normally Open
• Pipe Size: 1/4 inches
