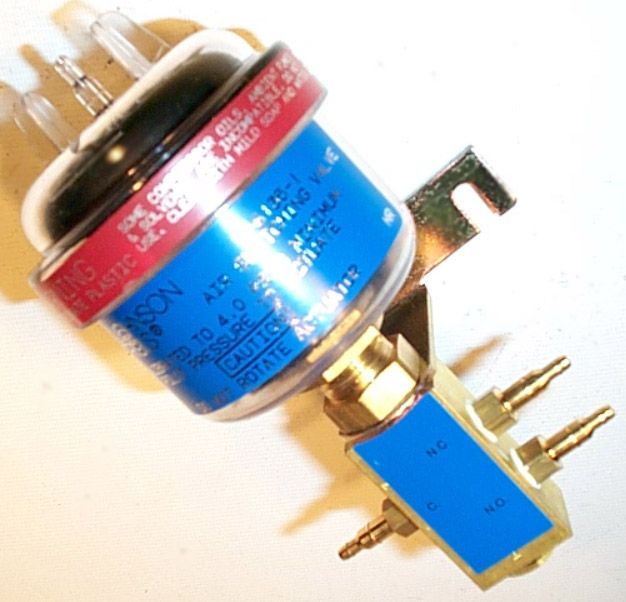

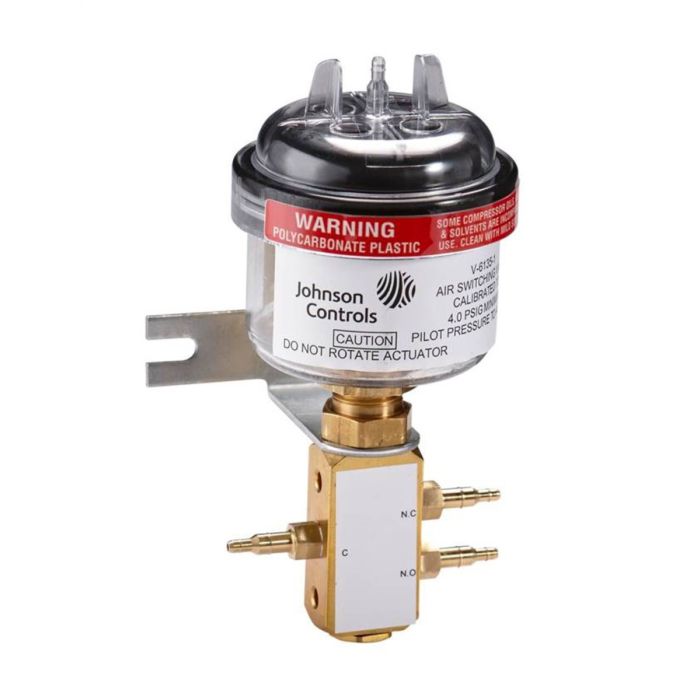

Johnson Controls V-6135-1 Three-Way Air Switching Valve 2-4 psig

Product Description

The Johnson Controls V-6135-1 Three-Way Air Switching Valve offers precise control over air flow in pneumatic systems. This valve, suited for applications such as day/night air switching and heating/cooling operations, operates efficiently within a 2 to 4 psig pressure range.

• Fast acting two-position switching mechanism
• Supplied with integral surface mounting bracket
• Narrow dead band between output modes to prevent simultaneous opening

Product Highlights

This air switching valve functions effectively as a selector or diverter. It is critical for systems requiring reliable air direction changes under variable pressures.

Product Information

Standard Information

• Brand: Johnson Controls
• Model: V-6133-1

Technical Specifications

• Pressure Range: 2-4 psig
• Connection Type: Barbed fittings for 5/32 inch or 1/4 inch OD polytubing
• Maximum Air Pressure: 75 psi
• Temperature Control Range: 40 to 125 degrees Fahrenheit
• Air Consumption: 1.5 cfm
