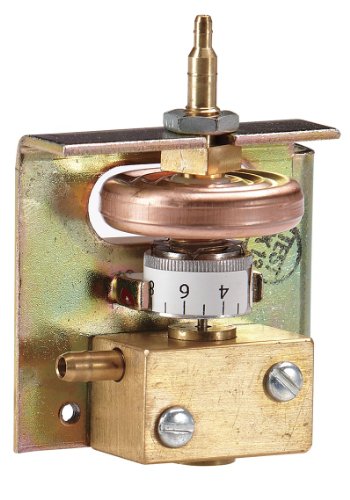

Johnson Controls V-6040-1 Safety Relief Pilot Valve Normally Open 1 to 20 psi

Product Description

The Johnson Controls V-6040-1 is a safety relief pilot valve designed for precise control of air pressure in pneumatic systems. This valve operates normally open and can handle pressure ranges from one to twenty psi. The model features a quarter inch barb for easy connection and is suitable for a variety of applications.

• Normally open operation for reliable performance
• Controls air pressure from one to twenty psi
• Includes a bracket for secure installation

Product Highlights

This pilot valve is essential for HVAC applications, ensuring proper air pressure management and system efficiency.

Product Information

Standard Information

• Manufacturer: Johnson Controls Inc
• Model: V-6040-1

Technical Specifications

• Dimensions: 2 inches (Height) x 2 inches (Width) x 2 inches (Depth)
• Control Air Pressure: 1 to 20 psi
• Air Connections: 1/4 inch barb
• Air Consumption: 1.5 cfm
• Temperature Control Range: -20 degrees to 140 degrees F
• Includes: Bracket
• Country of Origin: Mexico
