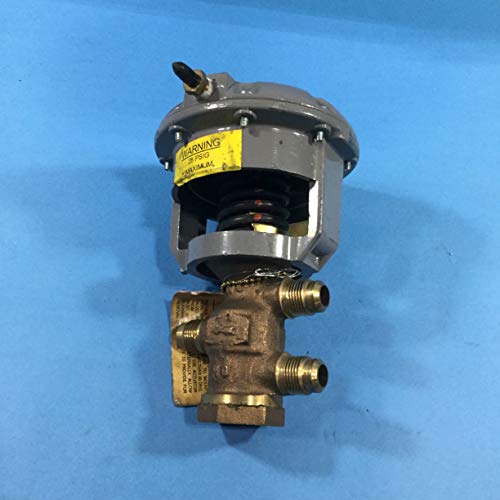

Johnson Controls V-4332-1006 Brass Pneumatic Flare Valve 1 2 Inch Three Way Mix 9 to 13 PSI 2.0 Cv

Product Description

The Johnson Controls V-4332-1006 pneumatic flare valve is engineered for precise control of hot or cold water in various HVAC applications. This 1/2 inch three-way mixing valve features a 2.0 Cv and operates within a 9 to 13 psi spring range, ideal for small HVAC terminal units.

• Easy installation with SAE 45 flare connections.
• Robust 400 psig static body pressure rating.
• Comes with a V-3000-1 pneumatic actuator, with V-3000-2 and VA-805x series actuators available separately.

Product Highlights

This valve ensures long-lasting reliability and energy efficiency in HVAC systems, contributing to enhanced occupant comfort and reduced operational costs.

Product Information

Standard Information

• Brand: Johnson Controls
• Model: V-4332-1006

Technical Specifications

• Valve Type: Three-way mixing
• Body Material: Brass
• Connection Size: 1/2 inch
• Cv Rating: 2.0
• Pressure Range: 9 to 13 psi
• Actuator Type: Pneumatic
• Product Group: BISS
