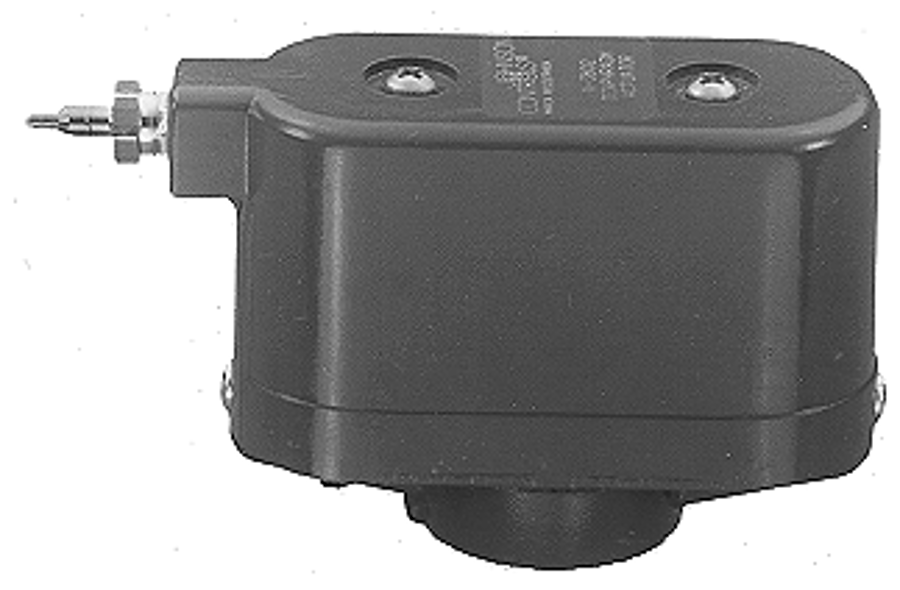

Johnson Controls V-3802-1 Valve Actuator Oval

Product Description

The Johnson Controls V-3802-1 Valve Actuator is a pneumatic actuator used for steam and water valves. It adjusts valve modulating plugs based on a pneumatic signal from a controller, providing reliable performance in various applications.

• Perfect for areas with limited mounting space
• Easy removal or repositioning with a single set screw
• Simple field mounting to valve bonnet

Product Highlights

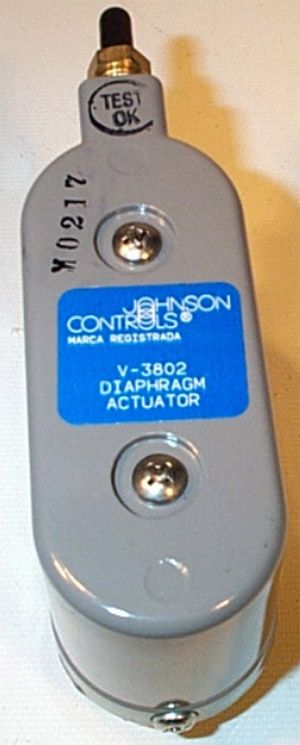

The V-3802-1 Valve Actuator features an oval top design, ideal for HVAC systems. It offers robust operation with its die-cast aluminum housing and molded synthetic elastomer diaphragm. This ensures a constant effective area throughout the valve stem stroke. The actuator is sufficiently strong to manage most seating pressures, making it a versatile choice for steam and water valves.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: V-3802-1

Technical Specifications

• Weight: 0.70 lbs
• Length: 6.86 inches
• Width: 9.5 inches
• Height: 11.61 inches
• Air Connections: 1/8 NPT
• Material: Die-cast aluminum housing
• Actuator Type: Pneumatic
• Country of Origin: United States
