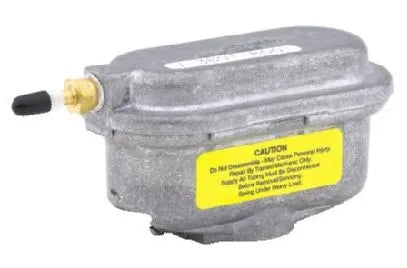

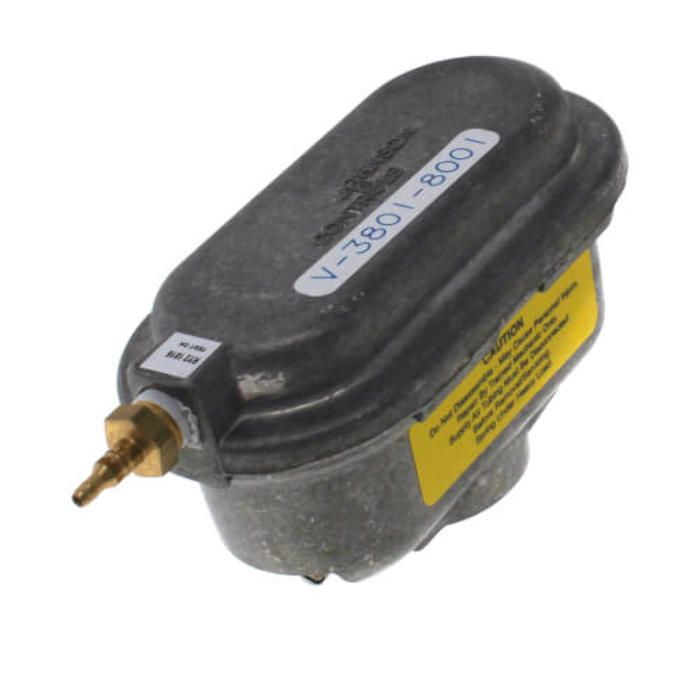

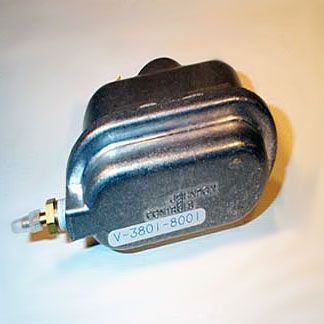

Johnson Controls V-3801-8001 Pneumatic Valve Actuator for 1/2 & 3/4 VG7000 Valves

Product Description

The Johnson Controls V-3801-8001 pneumatic valve actuator is designed for precise control of 1/2 and 3/4 VG7000 valves. This actuator features a compact oval design that fits in restricted mounting spaces, making it ideal for tight installations. The actuator operates effectively with a maximum control pressure of thirty psig. It features a one-eighth inch National Pipe Thread barbed fitting suitable for five-thirty-second inch or one-fourth inch outside diameter polytubing air connections. This actuator provides linear movement to ensure reliable valve operations in HVAC systems.

• Compact design fits into restricted mounting spaces.
• Single set screw design for easy assembly.
• Constant effective diaphragm area throughout stroke for optimal force output.

Product Highlights

The V-3801-8001 is built with a robust die-cast aluminum housing for durability and is designed to withstand operating conditions between minus twenty degrees Fahrenheit to one hundred fifty degrees Fahrenheit.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: V-3801-8001
