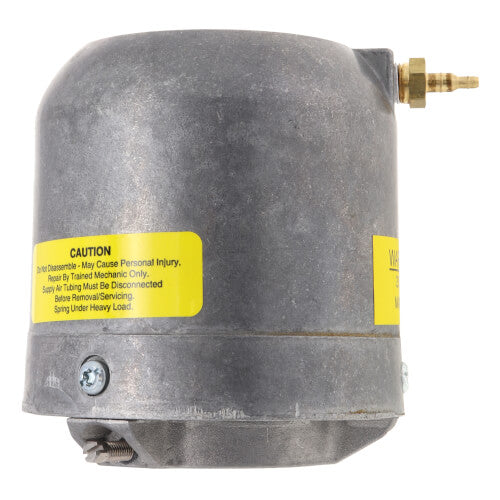

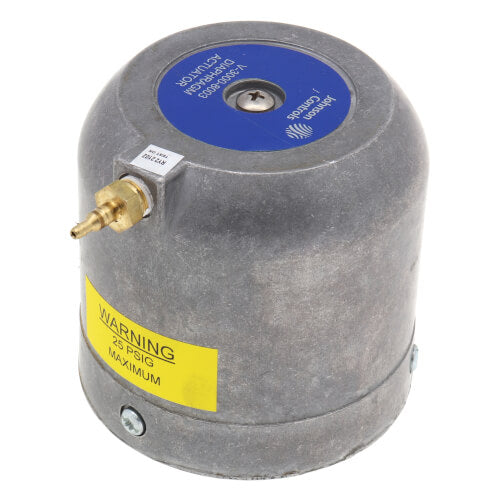

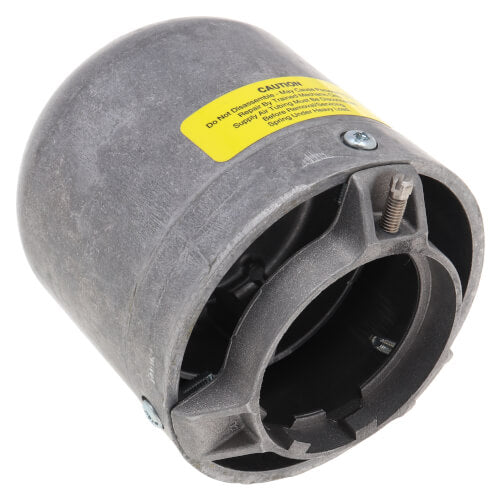

Johnson Controls V-3000-8003 Pneumatic Valve Actuator (0-25 psi)

Product Description

The Johnson Controls V-3000-8003 is a pneumatic valve actuator designed for reliable operation in demanding environments. It features a robust construction suitable for modulating steam or water valves according to pneumatic signals from a controller.

• Universal valve mounting compatible with all Johnson Controls valves.
• Rolling diaphragm design ensures consistent diaphragm area for effective force throughout the stroke.
• Integral stroke position indicator for visible valve position reference.

Product Highlights

This actuator is ideal for medium-duty applications in industrial automation, offering precise control in HVAC systems.

Product Information

Standard Information

• Brand: Johnson Controls
• Part Number: V-3000-8003
• Min Order Quantity: 1
• Availability: In Stock

Technical Specifications

• Operating Conditions: -20 F to 150 F (-29 C to 66 C)
• Housing: Die-Cast Aluminum
• Maximum Control Pressure: 25 psig
• Air Connection: 1/8 in. NPT Barbed Fitting for 5/32 in. or 1/4 in. O.D. Polytubing
• Weight: 1.27 lbs
• Dimensions: 5.3 in (Depth) x 4.9 in (Width) x 4.25 in (Height)
