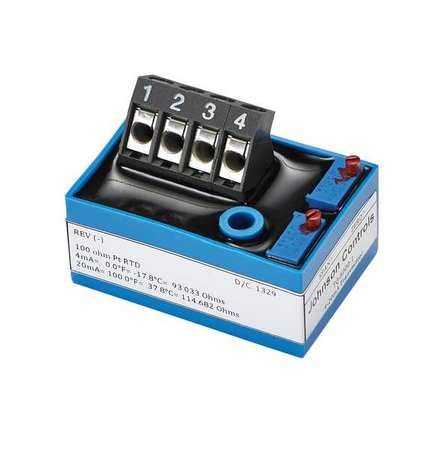

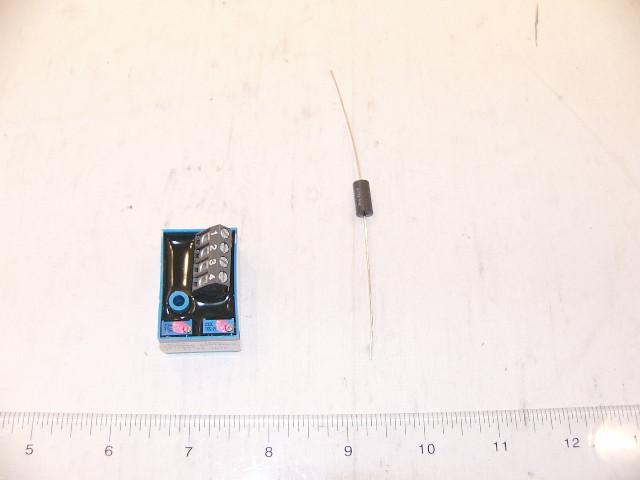

Johnson Controls TQ-6000-1 Temperature Transmitter 0/100f 4-20MA

Product Description

The Johnson Controls TQ-6000-1 is a robust temperature transmitter designed to provide reliable and accurate temperature measurements. This product is essential for systems requiring 0 to 100 degrees Fahrenheit temperature monitoring with a 4-20 mA output.

• Utilizes a 2-wire current loop for effective long-distance signal transmission.
• Features calibration accuracy of +/-0.1% of span at 32 degrees Fahrenheit.
• Adjustable zero and span settings allow +/-5% tweak of span for precise control.

Product Highlights

Designed to work seamlessly with 100-ohm platinum sensors, the TQ-6000-1 transmits data without loss of accuracy due to lead wire resistance, making it ideal for various commercial and industrial applications.

Product Information

Standard Information

• Brand: Johnson Controls
• Dimensions: 8.01 x 8.01 x 8.01 inches

Technical Specifications

• Type: Temperature Transmitter
• Output Signal: 4-20 mA
• Measurement Range: 0 to 100 degrees Fahrenheit
