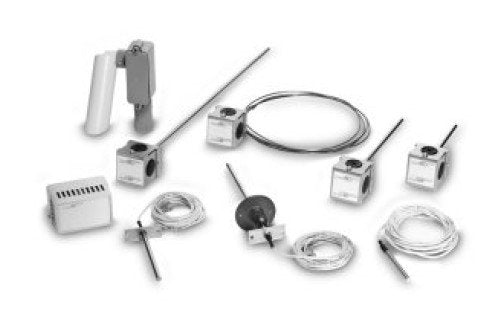

Johnson Controls TE-635AM-1 Temperature Sensor - 1K Ohm - Metal Enclosure

Product Description

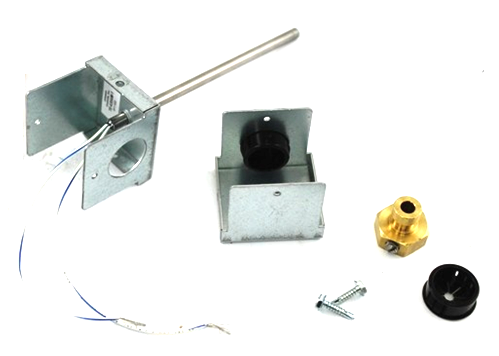

The Johnson Controls TE-635AM-1 Temperature Sensor is designed for accurate temperature measurement in various environments, ensuring reliable performance. This model features a well-mounting style with a threadless brass sensor holder.

• 1K ohm platinum temperature sensor, suitable for a wide range of applications.
• Durable metal enclosure designed to meet plenum requirements.
• Probe length of six inches for deep penetration into wells and other environments.

Product Highlights

This sensor is equipped with a six-inch probe made of robust materials, ensuring longevity and resilience in industrial settings. Thanks to its precision engineering, it offers excellent temperature monitoring accuracy, crucial for many industrial and commercial operations.

Product Information

Standard Information

• Brand: Johnson Controls
• Model Number: TE-635AM-1

Technical Specifications

• Type: Temperature sensor
• Temperature range: -40 degrees Fahrenheit to 200 degrees Fahrenheit
• Accuracy: ±1 degree Fahrenheit
• Resolution: 0.1 degree Fahrenheit
• Probe material: Stainless steel
• Output signal: 1K ohm resistance
• Mounting: 1-1/2 inch NPT thread
• Dimensions: 2.25 inches diameter x 8.5 inches length
