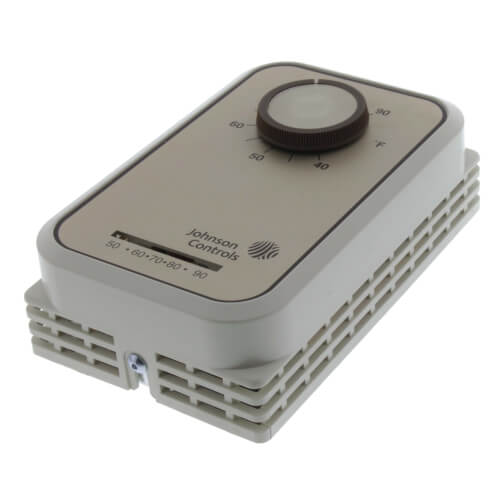

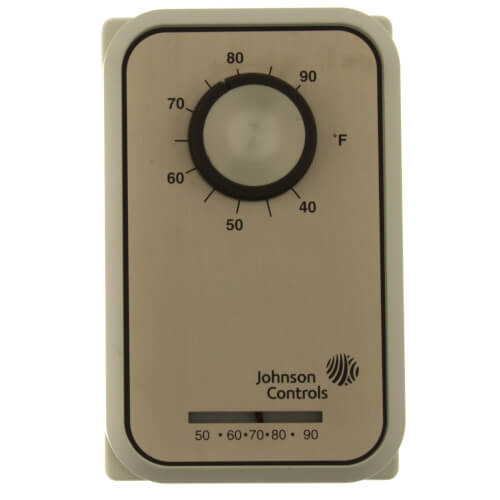

Johnson Controls T26T-3C Heavy Duty Line Voltage Thermostat 40-90F Replacement T26T-3

Product Description

The Johnson Controls T26T-3C is a heavy duty line voltage thermostat designed for electric heat applications. This model features switch box mounting that isolates the electrical circuit from the sensing element, ensuring accurate temperature control. It operates effectively over a range of forty to ninety degrees Fahrenheit, making it suitable for various heating environments.

• Adjustable high and low range stops
• Enclosed Pennswitch for dust protection
• Easy installation with mounting plate

Product Highlights

This thermostat is built for durability and efficient operation in home heating systems.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: T26T-3C

Technical Specifications

• Differential: Approximately 0.7 F
• Ambient Operating Temperature: 0 to 105 F
• Sensing Element: Liquid Filled
• Thermometer: Bi-metal Type
• Switch: Snap-acting Contacts in Dust-protected Enclosure
• Mounting: Vertical or Horizontal 2 x 4 in. Wall Box
• Wiring Terminals: Large 8-32 x 1/4 in. Binder Head Screws
• Dimensions (H x W x D): 4.71 x 2.96 x 2.87 in.
• Amps (120V): 10
• Amps (208V): 10
• Amps (240V): 10
