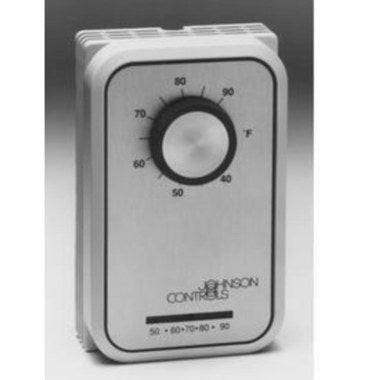

Johnson Controls T26A-14C Thermostat Energy Conservation SPDT 120/208/240/277 Volt 40-75 Degrees Fahrenheit

Product Description

The Johnson Controls T26A-14C thermostat is designed for energy conservation and operates at multiple voltages including one hundred twenty, two hundred eight, two hundred forty, and two hundred seventy-seven volts. The temperature setting ranges from forty to seventy-five degrees Fahrenheit.

• Voltage compatibility: 120/208/240/277 Volt
• Temperature range: 40-75 Degrees Fahrenheit
• Application: Heat Only

Product Highlights

This product features SPDT switching and adjustable high/low range stops for improved control. It ensures optimal performance in heating applications and meets energy conservation standards.

Product Information

Standard Information

• Brand: Johnson Controls
• Product Type: Energy Conservation SPDT

Technical Specifications

• Voltage: 120/208/240/277V
• Application: Heat Only
• Temperature Range: 40-75 Degrees Fahrenheit
• Shipping Weight: 3.000 lbs
• Differential: Approximately 0.7 F
• Ambient Operating Temperature: 0 to 105 Degrees Fahrenheit
• Sensing Element: Liquid Filled
• Mounting: Vertical or Horizontal 2 x 4 in. Wall Box
