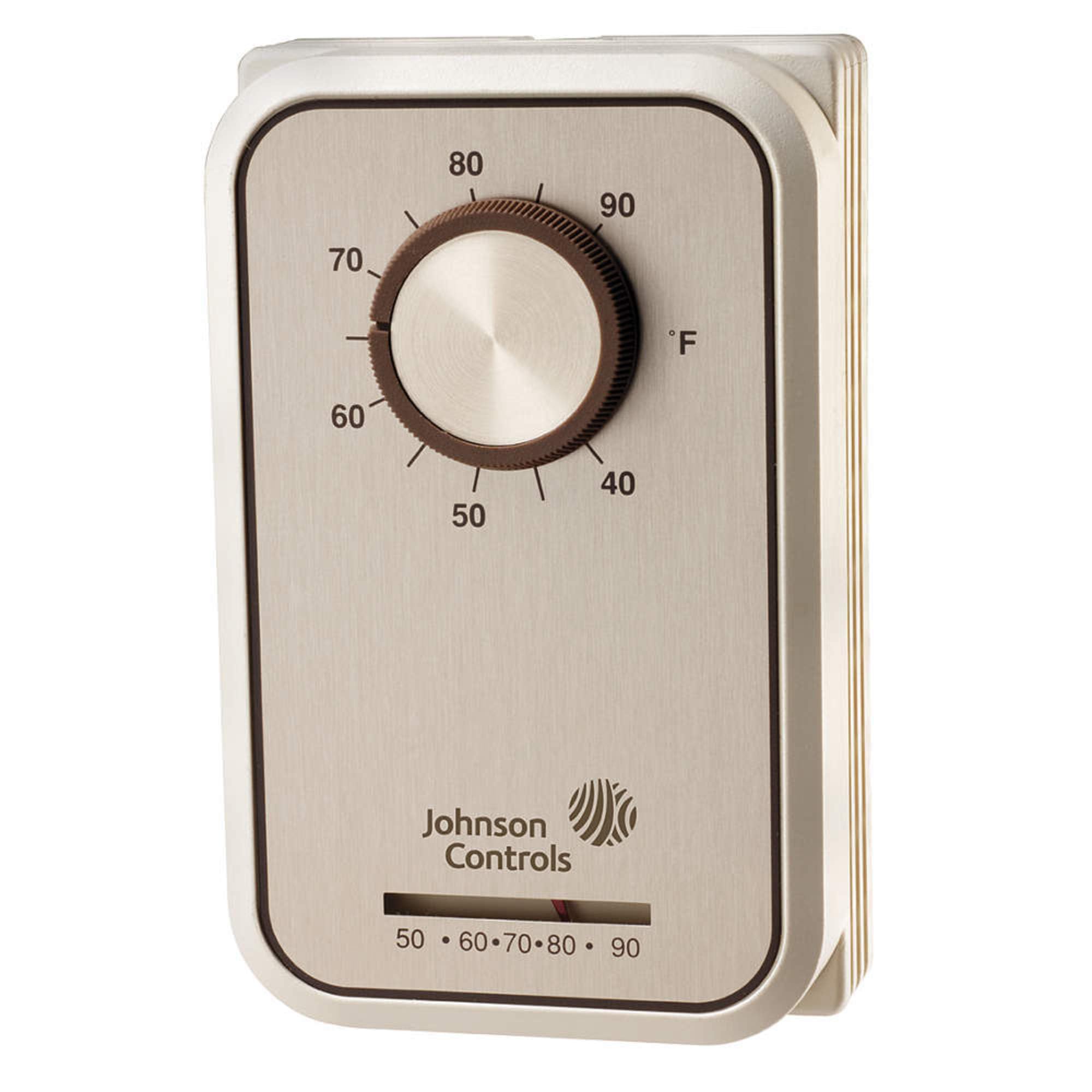

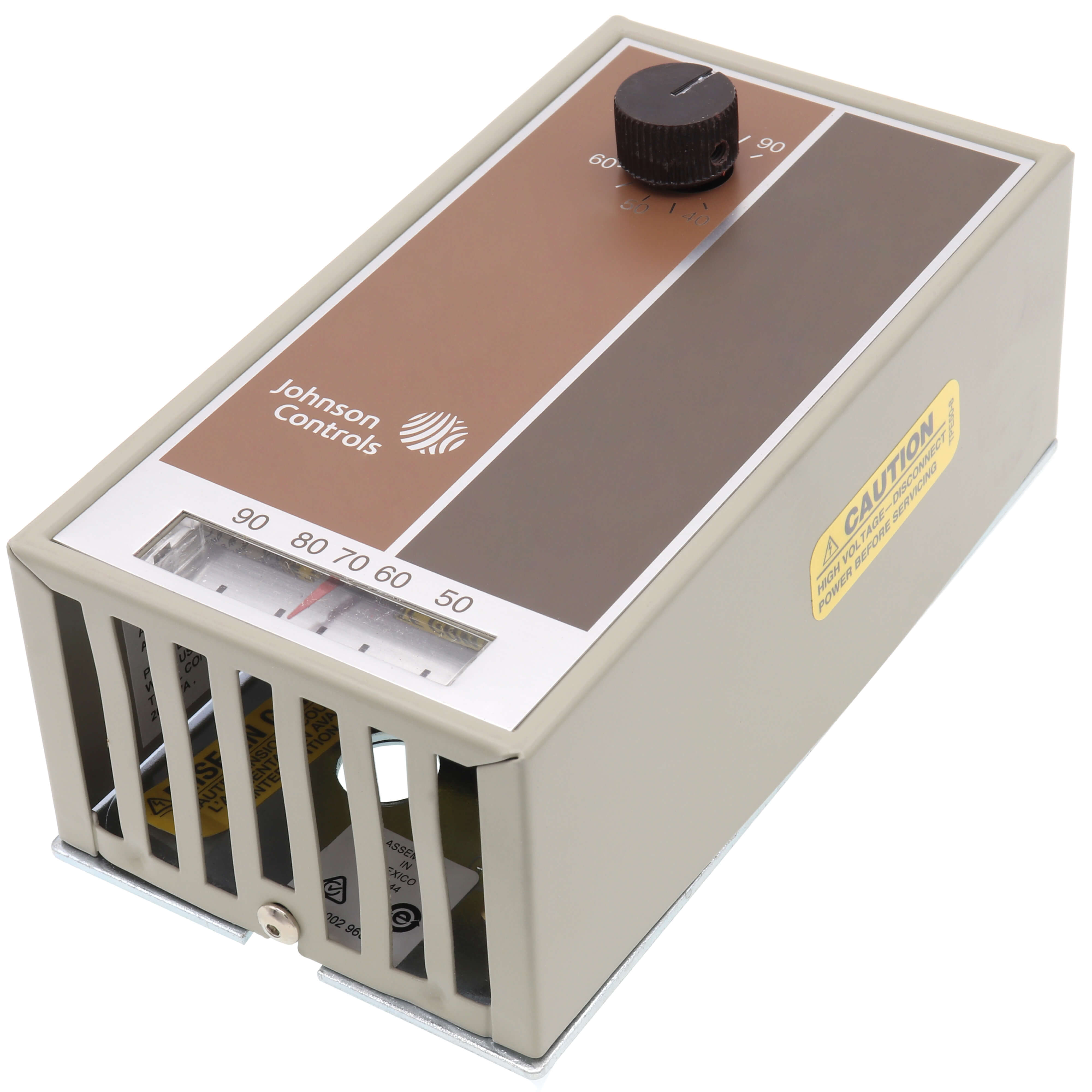

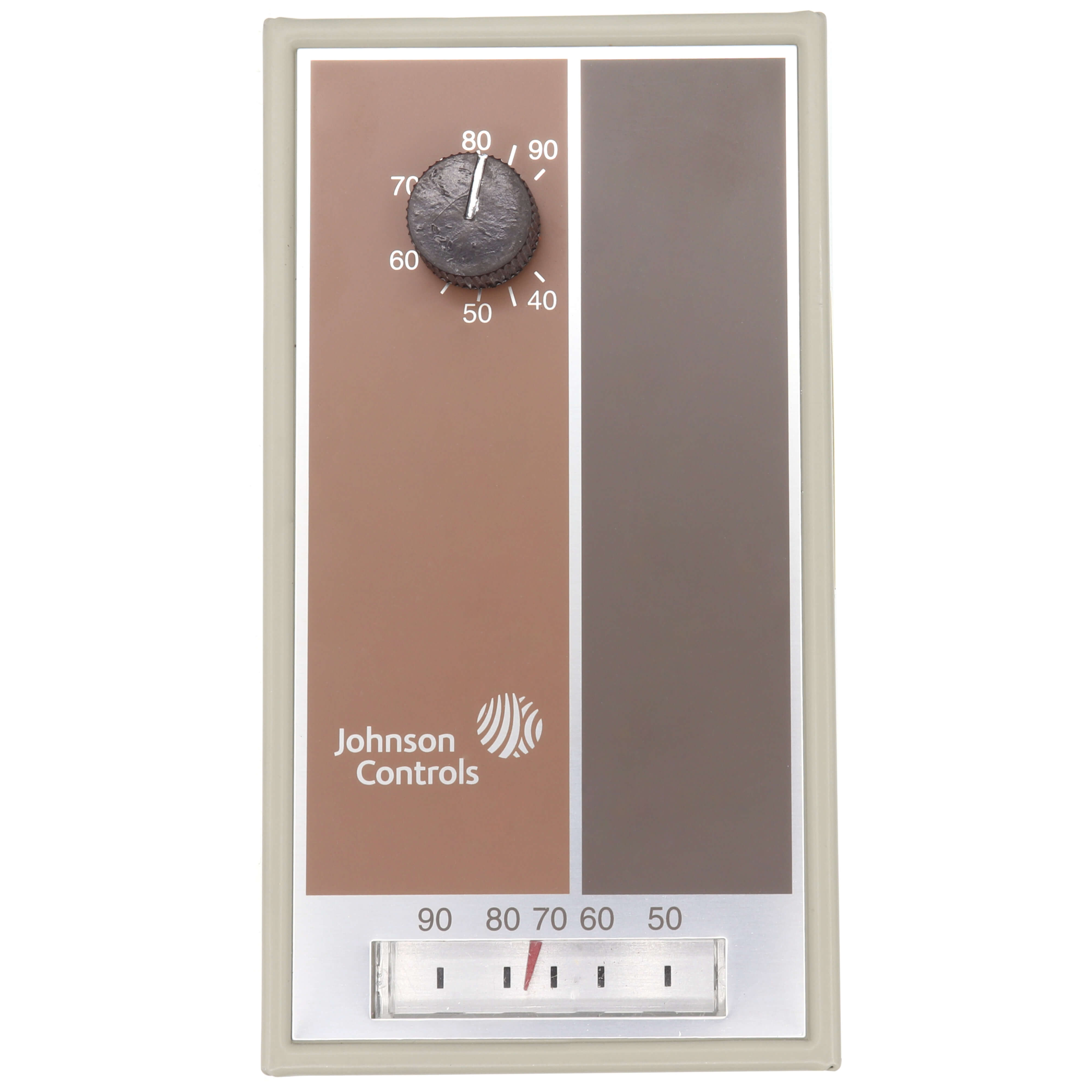

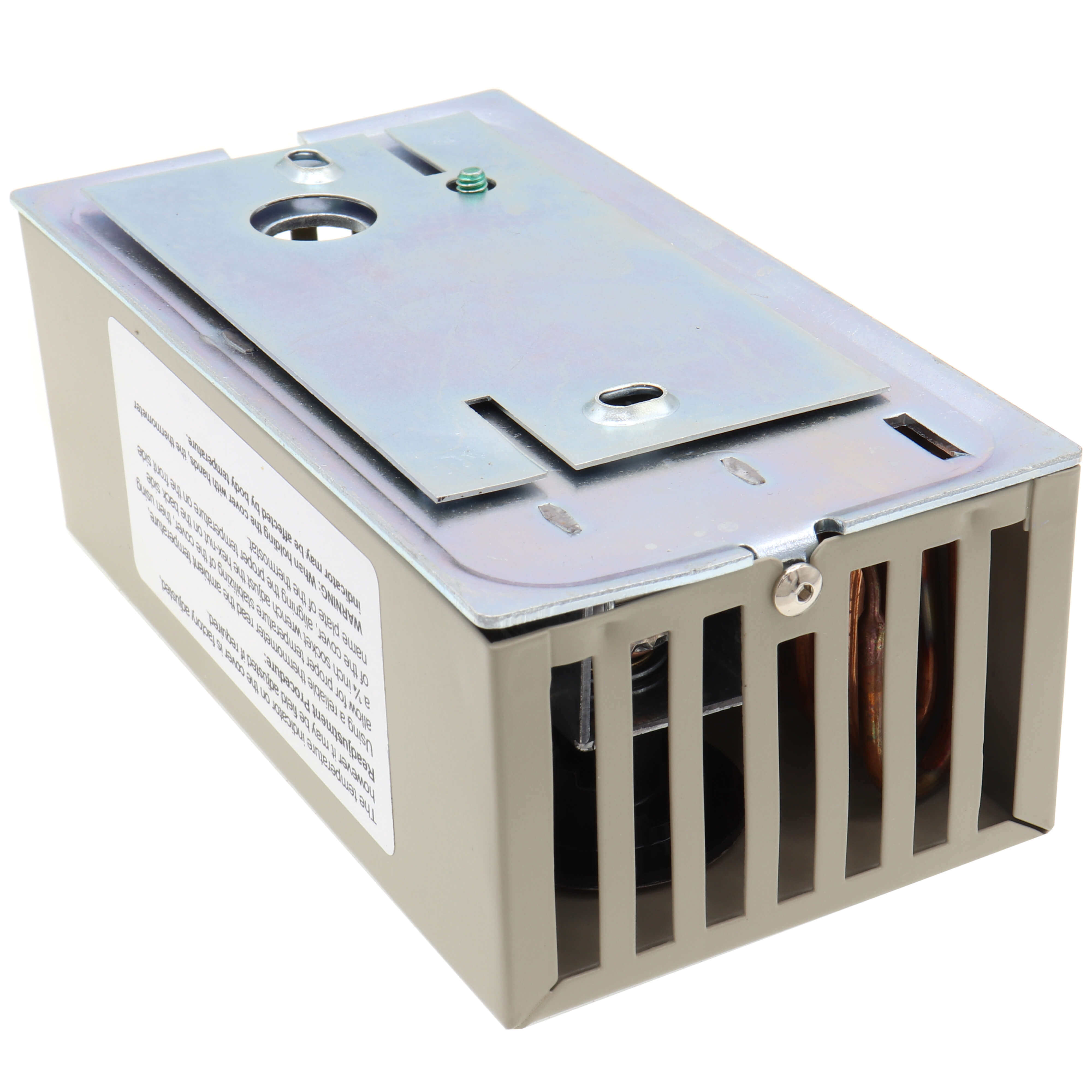

Johnson Controls T25A-1C Two-Stage Room Thermostat

Product Description

The JOHNSON CONTROLS T25A-1C two-stage room thermostat is designed for line- or low-voltage service, providing accurate control of operating functions. It manages two heating stages, such as in unit heaters or duct furnaces, and two cooling stages, like dual compressor units. It also offers automatic changeover control for heating and cooling in fan coil installations.

• Controls two stages of heating
• Controls two stages of cooling
• Provides automatic changeover control of heating and cooling

Product Highlights

This thermostat is ideal for valves, relays, fan coils, and compressor controls requiring accurate sensing.

Product Information

Standard Information

• Brand: JOHNSON CONTROLS
• Manufacturer Part Number: T25A-1C
• Country of Origin: Mexico

Technical Specifications

• Weight: 1.5
• 750mV Compatible: Yes
• Brand: Johnson Controls
• Cubic Measurement: 0.0491
• Dual Transformer Compatible: Yes
• Electrical Rating: 120 VAC
• Fan Switching: Yes
• GTIN: 10785028372311
• Heat Pump Compatible: Yes
• Height: 3.7
• Language: English
• Length: 6.2
• Manual: Yes
• Power Method: Power Supply
• Programmable Fan: No
• Prop 65: Yes
• Removable Interface: No
• Stages Cool: 1
• Stages Heat: 1
• System Switching: Yes
• Temperature Range: 40 (4.44
• UOM: EA
• UPC: 785028372314
• Vacation Mode: No
• Voltage: 120/240 VAC
• Width: 3.7
• Country of Origin: MEX
• Thermostat Switch Type: SPDT
• Thermostat Control Range: 40 Degrees to 90 Degrees F
• Thermostat Voltage: 120 to 277V AC
• Full Load Amps @ 120VAC: 15 A
• Full Load Amps @ 240VAC: 3 A
• Thermostat Programmable: No
• Remote Sensing Capability: No
• Thermostat Heating/Cooling: Heating/Cooling
• Remote Sensing Bulb Included: No
• Switch Action: Open/Close on Rise
• Number of Switches: 2
• Differential: 0.7 Degrees F
• Sensor Type: Bi-Metallic Spring
• Number of Heating Stages: 2
• Number of Cooling Stages: 2
• Temperature Differential: 1 to 1.3 Degrees F
• Minimum Control Temperature: 40 Degrees F
• Maximum Control Temperature: 90 Degrees F
• Mounting Direction: Vertical
• Number of Poles: 1
• Housing Material: Steel
• Pilot Duty Rating: 125 VA
• Changeover Type: Automatic
• Temperature Scale: Fahrenheit/Celsius
• Full Load Amps @ 120V AC: 6 A
• Enclosure NEMA Rating: 1
• Enclosure Color: Brown
• Programming Capability: Not Programmable
• Compatible System Type: Electric Cooling, Electric Heating
• Display Type: Analog
• Application: Heat or Cool
• Inductive Amps @ 120V: 10 A
• Contact Rating Resistive @ 120V: 16 A
• Inductive Amps @ 240V: 10 A
• Inductive Amps @ 208V: 10 A
• Locked Rotor Amps @ 240V: 18 A
• Locked Rotor Amps @ 120V: 36 A
• Number of Relay Outputs: 1
• Includes: (1) Allen Wrench, (2) Machine Screws
• Number of Relay Inputs: 1
• Standards: CSA Certified, UL Listed
• Electrical Connection Type: Screw Terminal
• Stages: Two Stage
• Set Point Range: 40 to 90 °F
• Mounting: wall
• Thermometer: 50° to 90°F (10° to 30°C), bimetal type may be field calibrated
