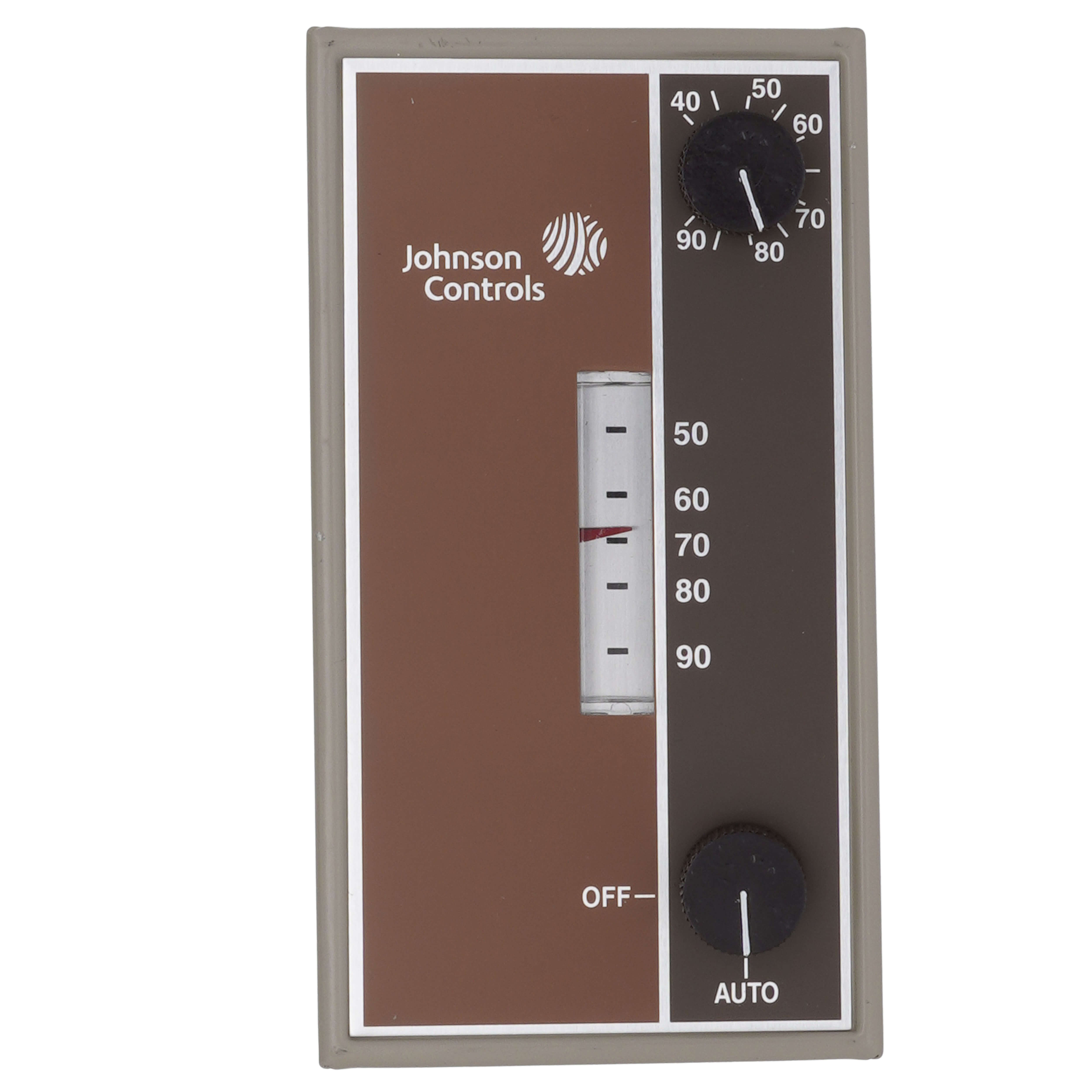

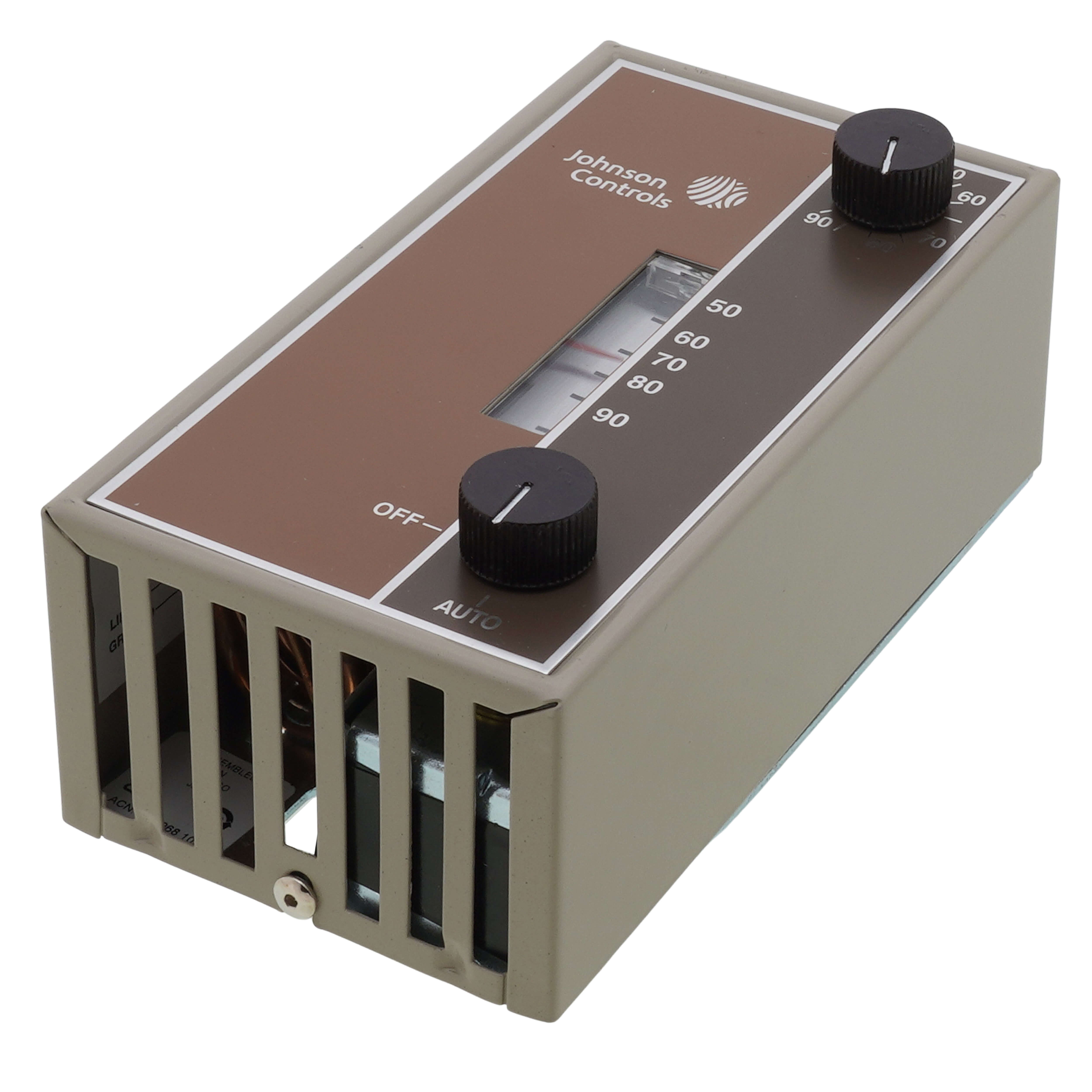

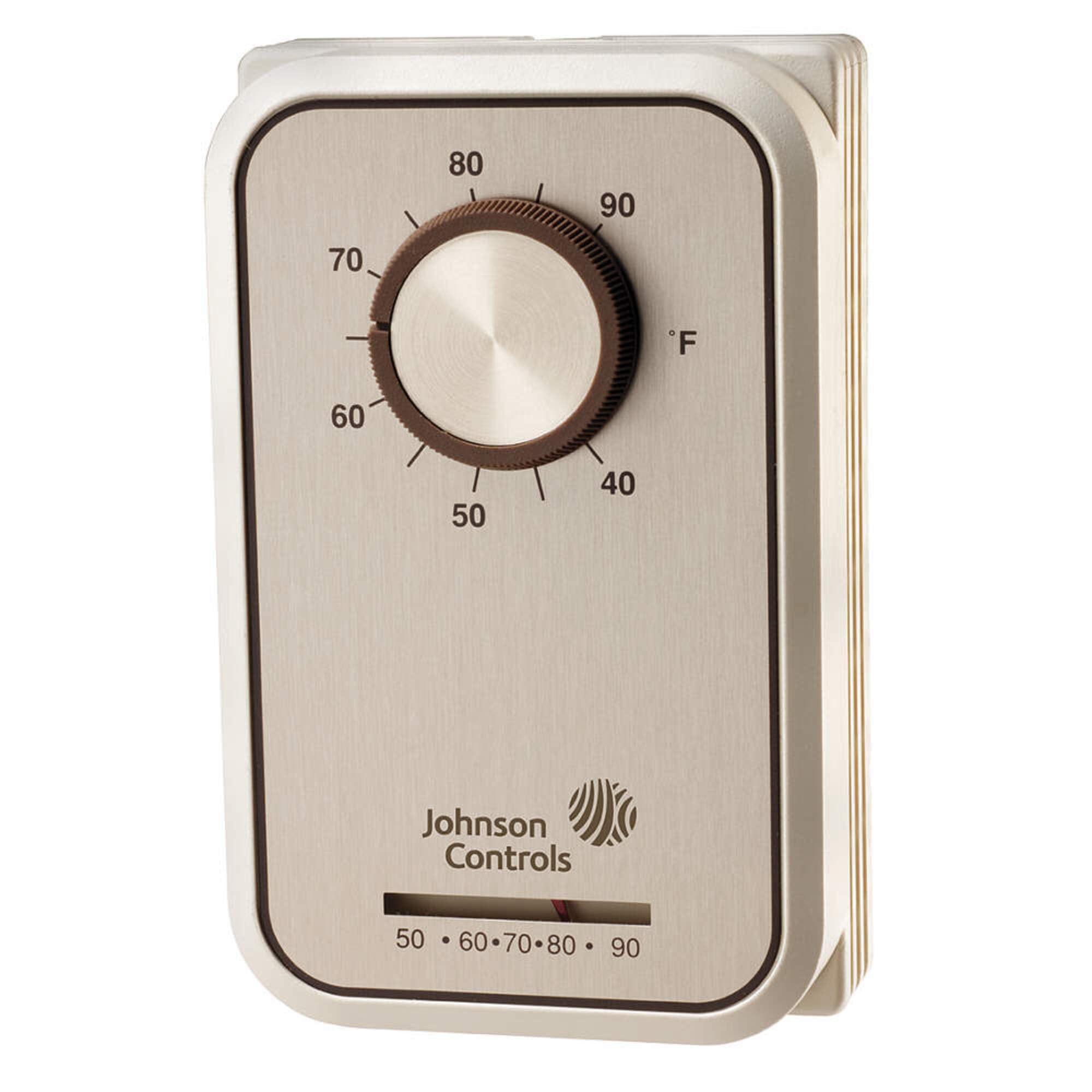

Johnson Controls T22JAA-1C Penn Series T22 Line Voltage Wall Thermostat Cooling Knob Adjustment SPST Application Off-Auto Switch

Product Description

The JOHNSON CONTROLS T22JAA-1C Penn Series T22 is designed for line voltage control of residential, commercial, or industrial heating or year-round air conditioning. It features a liquid-charged temperature sensing element and highly efficient diaphragm. It provides close temperature control and does not require heat or cold anticipators.

• Attractive beige colored, high-impact plastic enclosure
• Close differential without the need for anticipators
• Bi-metal thermometer supplied as standard

Product Highlights

This thermostat is ideal for unit heaters, fan coils, blast coils, refrigeration storage rooms, electric heat, and duct furnaces.

Product Information

Standard Information

• Brand: JOHNSON CONTROLS
• Manufacturer Part Number: T22JAA-1C
• Country of Origin: Mexico

Technical Specifications

• Application: SPST
• Adjustment: Knob
• Differential: 1.3 Degrees F
• Switch: Off-Auto
• Mounting: Separate mounting plate
• Switch Type: SPST
• Voltage: 120/208/240/277VAC
• Standards: UL E6688
• Sensor Type: Temperature
• Contact Type: Snap Action
• Display Type: Analog
• Fan Settings: No Fan Setting
• For Use With: Suitable for Temperature Control in Heating, Ventilating, Air Conditioning, Refrigeration Applications
• Mounting Type: Vertical
• Switch Action: Close on Rise
• Contact Rating: 120V AC, 208V AC, 240V AC, 277V AC
• Housing Material: Steel
• Switch Positions: Auto-Off
• Differential Type: Fixed
• Mounting Location: wall
• Pilot Duty Rating: 125 VA
• Temperature Scale: Fahrenheit/Celsius
• Number of Switches: 1
• Thermostat Voltage: 24 to 277V AC
• Temperature Readout: No
• Includes Positive Off: Yes
• Inductive Amps @ 120V: 6 A
• Inductive Amps @ 240V: 3 A
• Compatible System Type: Electric Cooling
• Thermostat Switch Type: SPST
• Full Load Amps @ 120VAC: 15 A
• Full Load Amps @ 240VAC: 3 A
• Locked Rotor Amps @ 120V: 36 A
• Locked Rotor Amps @ 240V: 18 A
• Number of Cooling Stages: 1
• Temperature Differential: 1.3 Degrees F
• Thermostat Control Range: 40 Degrees to 90 Degrees F
• Remote Sensing Capability: No
• Temperature Control Range: 40 Degrees to 90 Degrees F

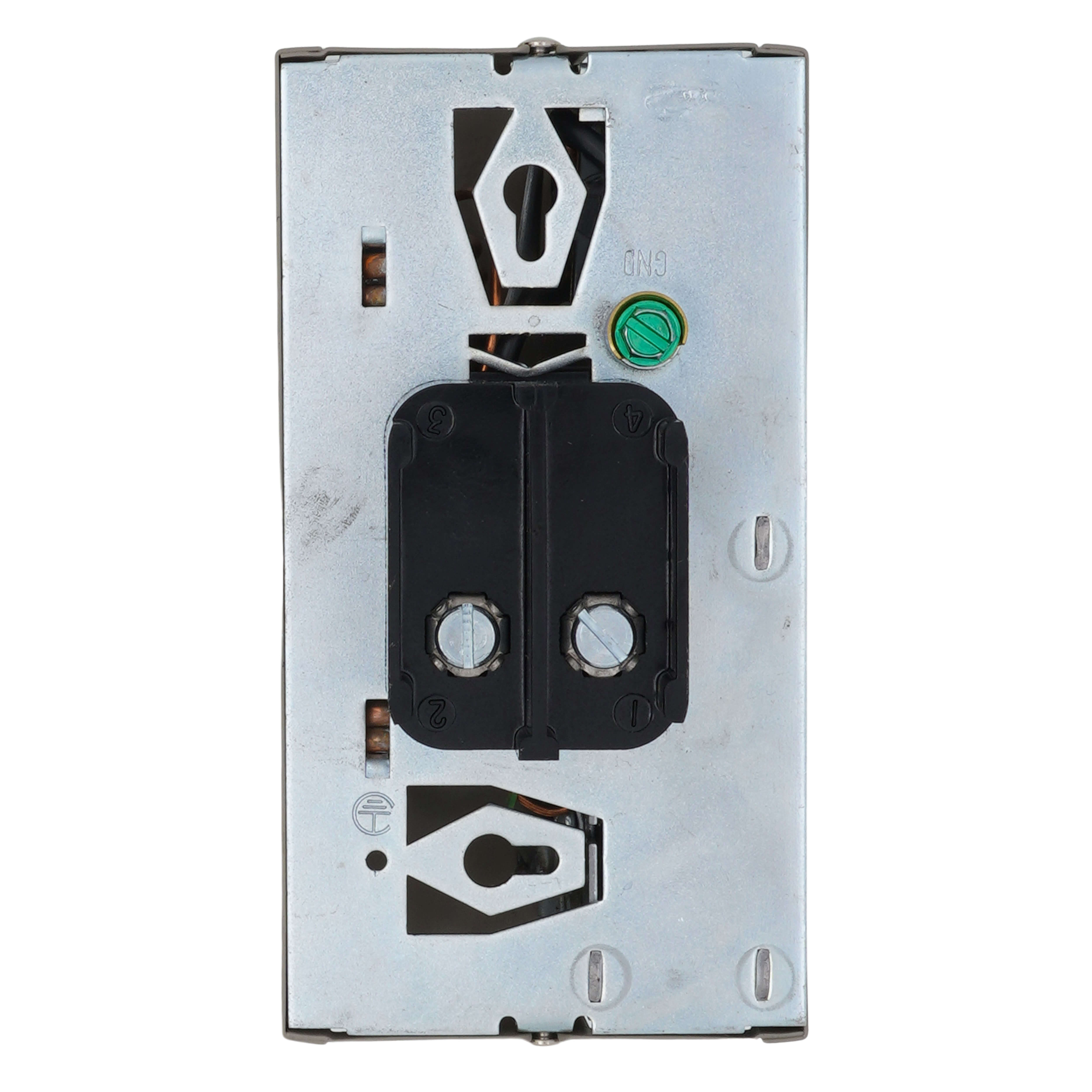

• Electrical Connection Type: Screw Terminals
• Thermostat Heating/Cooling: Cooling
• Maximum Control Temperature: 90 Degrees F
• Minimum Control Temperature: 40 Degrees F
• Remote Sensing Bulb Included: No
• Type: Wall
• Set Point Range: 40 to 90
• Setpoint range: 40 to 90 (5 to 30 )
• Sensing element: Liquid filled for positive trouble-free operation (anticipator not required)
• Thermometer: 50 to 90 (10 to 30 ), bimetal type may be field calibrated
