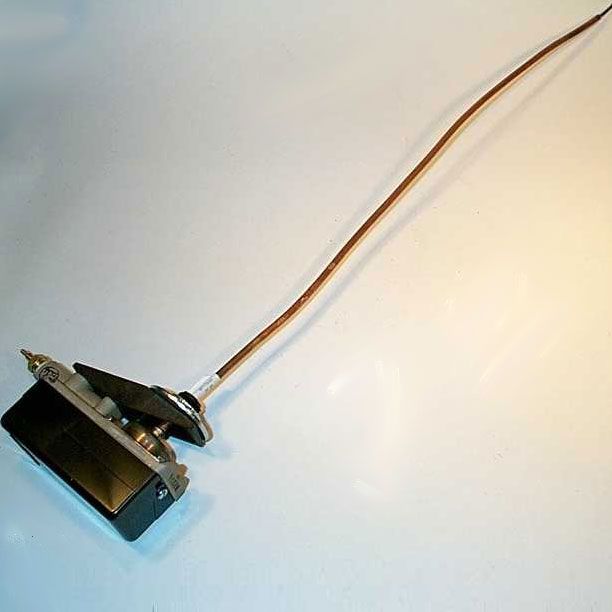

Johnson Controls T-3610-1002 Pneumatic Low Limit Thermostat

Product Description

The Johnson Controls T-3610-1002 is a pneumatic low limit thermostat specifically designed for use with unit ventilators. This equipment maintains a minimum air temperature effectively, ensuring proper climate control. The thermostat features a proportional control system that reacts accurately to variations in temperature.

• Proportional direct acting for precise temperature control.
• Includes an eighteen-inch rigid stem element for unit ventilator mounting.
• Ball type control port enhances accuracy.

Product Highlights

This thermostat is suitable for various commercial and industrial applications, providing energy efficiency and reliable performance.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: T-3610-1002

Technical Specifications

• Operating Conditions: -20 F to 150 F (-29 C to 66 C)
• Element Length: 18 inches
• Control Type: Proportional Direct Acting
• Control Range: 0 to 270 degrees Fahrenheit
• Sensitivity Range: 0.25 to 0.75 psi
• Connection Type: 1/8 NPT barbed fitting for 5/32 or 1/4 OD polytubing
