Johnson Controls T-5220-1009 High Volume Output Pneumatic Temperature Transmitter

Product Description

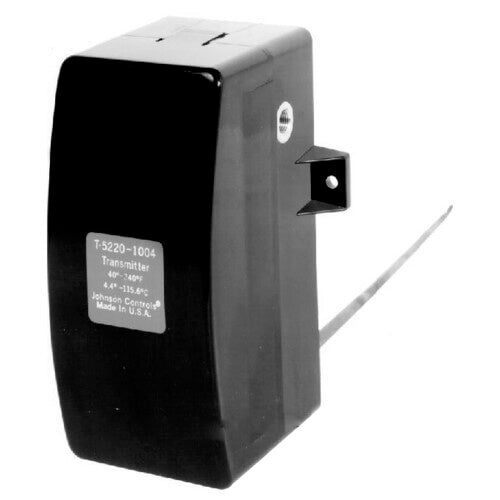

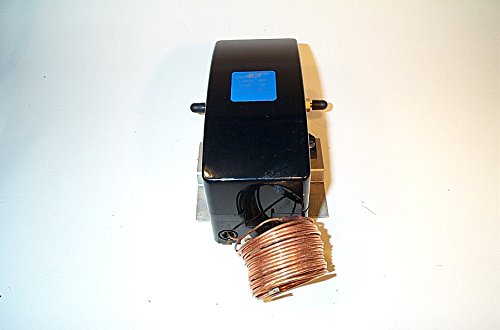

The Johnson Controls T-5220-1009 is a high volume output pneumatic temperature transmitter designed for measuring temperature in various applications including ducts, pipes, and tanks. This device converts temperature measurements into an air pressure signal for transmission to receivers or controllers. The T-5220 also functions as a dew point transmitter when used with a compatible dew point measuring system. The device is built for high output capacity and industrial-grade accuracy.

• Exact proportional relationship between temperature and transmitted signal.
• Includes necessary mounting equipment.
• Mountable in a vertical position on flat surfaces.

Product Highlights

This transmitter is suitable for HVAC applications requiring reliable temperature measurements and features a robust design for industrial use.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: T-5220-1009

Technical Specifications

• Temperature Operating Range: -18°C to 38°C
• Max Temperature: 100°F
• Min Temperature: 0°F
• Pneumatic Feedback: Yes
• Dimensions: 3.1 inches (depth) x 2.1 inches (width) x 1.8 inches (height)
• Shipping Weight: 2.7 pounds
• Mounting Style: Vertical
• Country of Origin: United States
