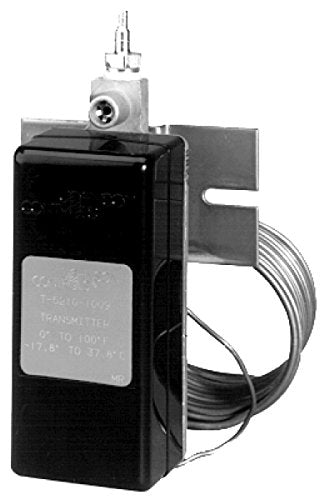

Johnson Controls T-5210-1144 Series Pneumatic Temperature Transmitter - Copper Bulb 4-ft Capillary -20-80F

Product Description

The Johnson Controls T-5210-1144 pneumatic temperature transmitter measures temperature and converts this measurement to an air pressure signal. This signal is transmitted to a pneumatic receiver, controller, or receiver-indicator. When used with a locally purchased decal, the T-5210 can also function as a dew point transmitter.

• Proportional relationship between temperature and signal
• Made in the United States
• Package dimensions: 6.0 L x 5.0 W x 6.0 H inches

Product Highlights

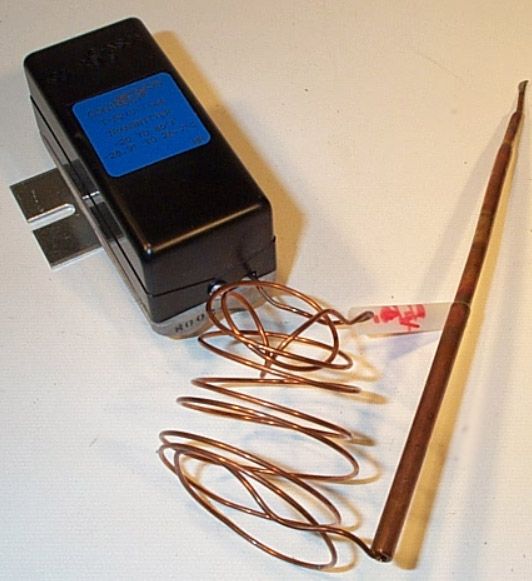

The transmitter features a copper bulb with a 4-foot capillary. It ensures a precise proportional relationship between the measured temperature and the transmitted signal. It includes a ball type control port for increased accuracy, reinforced lever for better linearity, bimetal element for ambient temperature compensation, and an integral hypodermic needle test point.

Product Information

Standard Information

• Brand: Johnson Controls
• MPN: T-5210-1144
• Model: T-5210

Technical Specifications

• Operating Range: -20 to 80 degrees Fahrenheit
• Capillary Length: 4 feet
• Country of Origin: United States
• Weight: 1.20 pounds
