Johnson Controls T-5210-1135 Pneumatic Temperature Transmitter 200-400 Degrees Fahrenheit

Product Description

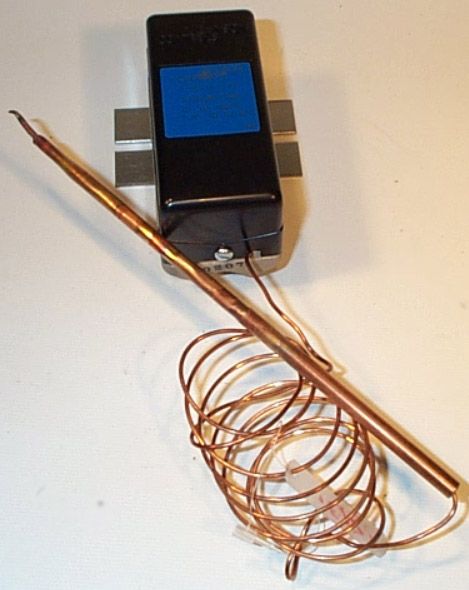

Johnson Controls T-5210-1135 pneumatic temperature transmitter is an advanced device designed to accurately measure temperature ranges from 200 to 400 degrees Fahrenheit. It features a robust copper bulb and a four-foot capillary tube, converting temperature measurements into air pressure signals for transmission to pneumatic controls.

• Accurate temperature to air pressure conversion
• Durable copper bulb
• Long capillary tube for flexible installation

Product Highlights

This transmitter features a ball control port for increased response accuracy, a lever with reinforced edges for enhanced linearity, and a bimetal element that compensates for ambient temperature effects. It also includes an integral hypodermic needle test point for optimal calibration.

Product Information

Standard Information

• Brand: Johnson Controls
• Model: T-5210

Technical Specifications

• Operating Temperature Range: 200-400 degrees Fahrenheit
• Capillary Length: 4 feet
• Material: Copper
• Weight: 2.00 lbs
