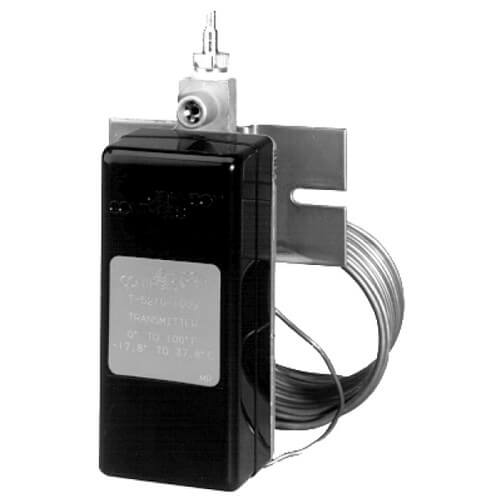

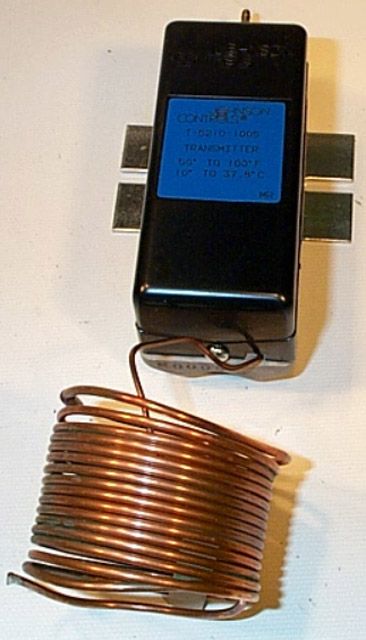

Johnson Controls T-5210-1124 Pneumatic Signal Transmitter with 8' Capillary (40 to 65F) Replacement MPN

Product Description

Johnson Controls T-5210-1124 is a pneumatic signal transmitter designed to measure temperature and convert this measurement into an air pressure signal. Featuring a temperature range from forty to sixty-five degrees Fahrenheit, this unit includes a remote eight-foot copper averaging element and a one-foot copper capillary.

• Temperature measurement range of 40-65°F
• Includes an eight-foot copper averaging element
• Features a ball type control port for enhanced accuracy

Product Highlights

This transmitter is suitable for various HVAC applications. It provides a direct proportional relationship between the measured temperature and the transmitted air pressure signal. When paired with a Dewcel, it operates effectively as a dew point transmitter.

Product Information

Standard Information

• Brand: Johnson Controls
• Model: T-5210

Technical Specifications

• MPN: T-5210-1124
• Weight: 2.20 lbs
• Capillary Length: 8 feet
• Operating Temperature Range: 40 to 65°F
• Element Type: Copper Bulb
