Johnson Controls T-5210-1118 Pneumatic Temperature Transmitter Direct Acting 0 to 100F

Product Description

The Johnson Controls T-5210-1118 is a pneumatic temperature transmitter that precisely measures and converts temperature into a controlled air pressure signal. Ideal for a range of industrial and HVAC applications, this device supports ambient temperatures up to 270 degrees Fahrenheit and operates with air pressures from 3 to 15 psi.

• Temperature control range from 0 to 100 degrees Fahrenheit
• Features a robust 204-inch capillary and 1/4-inch sensing bulb
• Direct acting mechanism with a maximum air pressure capability of 25 psi

Product Highlights

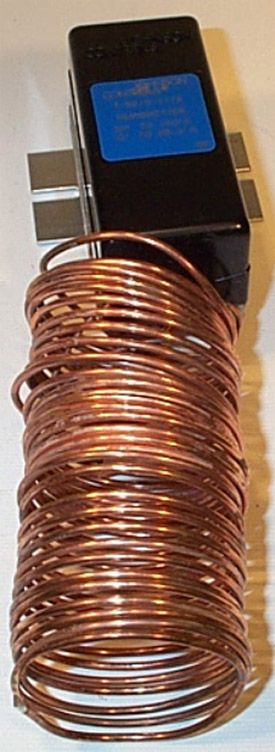

This transmitter includes a 17-foot copper averaging element and 1-foot copper capillary, enhancing measurement accuracy and reliability. It is designed with a ball-type control port and an integral hypodermic needle test point to ensure precise operation.

Product Information

Standard Information

• Brand: Johnson Controls
• Model: T-5210

Technical Specifications

• Weight: 1.20 lbs
• Height: 5 3/16 inches
• Width: 3 inches
• Depth: 2 1/8 inches
• Air Connections: 1/8 in NPT Barbed Fitting for 5/32 in or 1/4 in OD Polytubing
• Air Consumption: 0.2 scfm
